WiFi 7 AP pro interiérové použití se 8 samostatnými streamy a přidaným vysílacím pásmem v 6GHz a LAN portem s rychlostí až 10Gbps

- WiFi 7
- 8 samostatných streamů
- pokrytí 160 m²
- 500+ samostatných připojených klientů
- napájení přes POE++
- 10/5/2,5/1 GbE uplink
- montážní držák na zeď / strop

Overview
Dimensions   O206 x 32.5 mm
WiFi Standard   WiFi 7
Spatial Streams   6
Coverage Area   160 m² (1,750 ft²)
Max. Client Count   500+
Uplink   10 GbE
Mounting   Ceiling, Wall   (Lite Mount Included)
Power Method   PoE++
Performance
MIMO
6 GHz   2 x 2 (DL/UL MU-MIMO)
5 GHz   4 x 4 (DL/UL MU-MIMO)
2.4 GHz   2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
6 GHz   5.8 Gbps (BW320)
5 GHz   8.6 Gbps (BW240)
2.4 GHz   688 Mbps (BW40)
Antenna Gain
6 GHz   6 dBi
5 GHz   6 dBi
2.4 GHz   4 dBi
Max. TX Power
6 GHz   24 dBm
5 GHz   29 dBm
2.4 GHz   23 dBm
Max. BSSIDs   8 per Radio
Supported Data Rates
802.11be (WiFi 7)    6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)    5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
802.11ax (WiFi 6)   7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5)   6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n   6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
Wireless Meshing   Yes
Band Steering   Yes
802.11v BSS Transition Management   Yes
802.11r Fast Roaming   Yes
802.11k Radio Resource Management (RRM)   Yes
Zero-Wait DFS   Yes
Advanced Radio Management   Yes
Real-Time Spectral Analysis   Yes
Passpoint (Hotspot 2.0)   Yes
Captive Hotspot Portal
Custom Branding Landing Page   Yes
Voucher Authentication   Yes
Payment-Based Authentication   Yes
External Portal Server Support   Yes
Password Authentication    Yes
Guest Network Isolation   Yes
Private Pre-Shared Key (PPSK)   Yes
WiFi Speed Limiting   Yes
Client Device Isolation   Yes
WiFi Schedules   Yes
RADIUS over TLS (RadSec)    Yes
Dynamic RADIUS-assigned VLAN   Yes
Max. Power Consumption   29W
Supported Voltage Range   42.5—57V DC

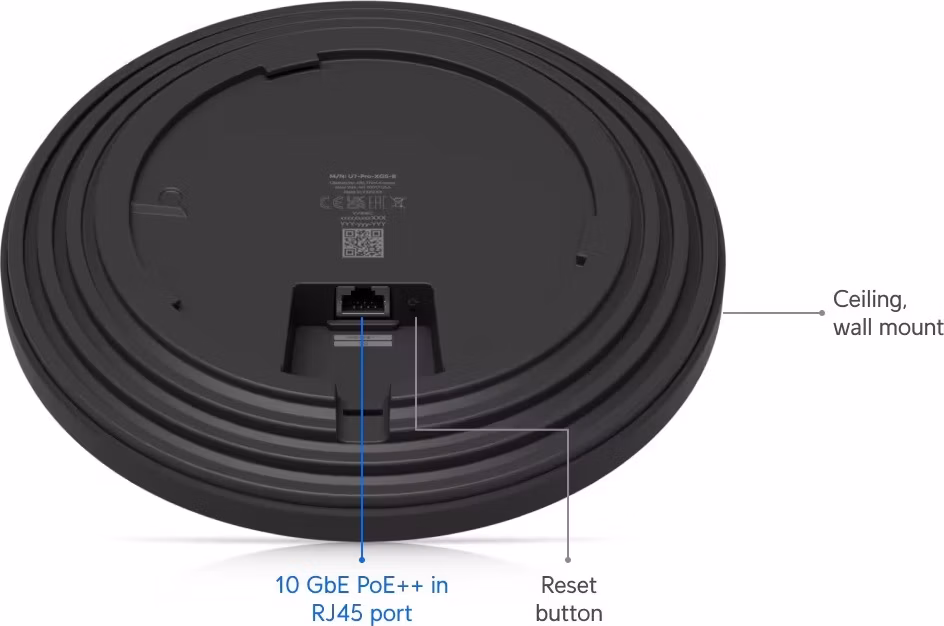

Networking Interface   (1) 10 GbE RJ45 port
Weight   800 g (1.8 lb)
Management   Ethernet
Enclosure Material   UV-stabilized polycarbonate, aluminum alloy
Mount Material    Stainless steel (SUS304), galvanized steel (SGCC)
LEDs   System    White/Blue
Channel Bandwidth   HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
NDAA Compliant   Yes
Certifications   CE, FCC, IC
Ambient Operating Temperature   -30 to 40° C (-22 to 104° F)
Ambient Operating Humidity   5 to 95% noncondensing

Software
Application Requirements   UniFi Network   Version 9.0.114 and later (U7 Pro XGS - White)    Version 9.1.120 and later (U7 Pro XGS - Black)
