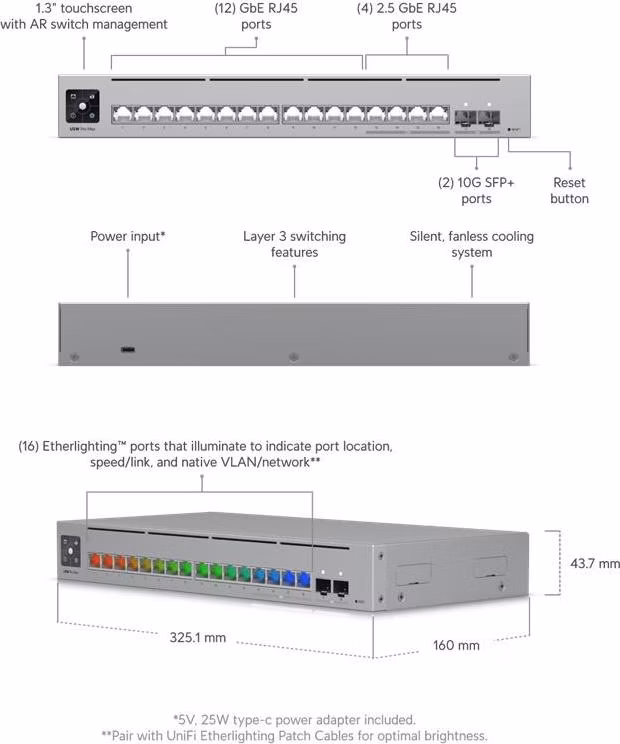

A 16-port, Layer 3 Etherlighting™ switch 2.5 GbE and versatile mounting options.

Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
(4) 2.5 GbE RJ45 ports
(12) GbE RJ45 ports
(2) 10G SFP+ ports

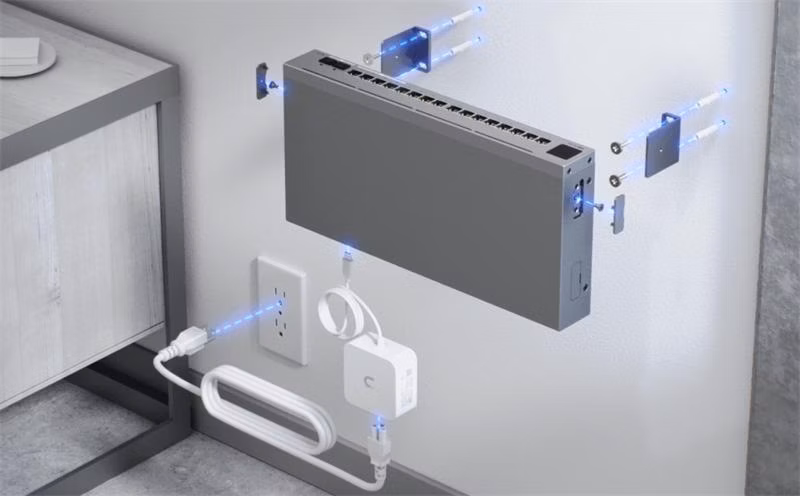

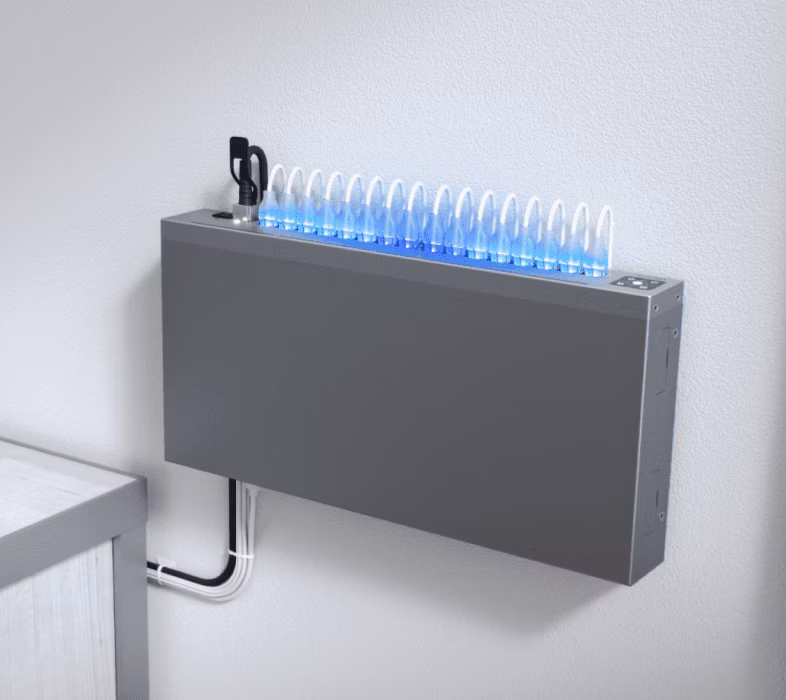

Versatile desktop, wall, and rack** mounting
Silent, fanless cooling system

*Pair with UniFi Etherlighting Patch Cables for optimal brightness.
**Requires add-on Rack Mount accessory.

Mechanical
Dimensions 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")
Weight 1.95 kg (4.3 lb)
Enclosure material SGCC steel


Hardware
Management interface Ethernet In-Band
Networking interface (12) GbE RJ45 ports
(4) 1/2.5 GbE RJ45 ports
(2) 10G SFP+ ports
Total non-blocking throughput 42 Gbps
Switching capacity 84 Gbps
Forwarding rate 62.496 Mpps
Power method Type-C adapter
Power supply 5V, 25W
Max. power consumption 25W
LCM display (1) 1.3" touchscreen
Button Factory reset
Ambient operating temperature -5 to 40° C (23 to 104° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC


Switching Features
Layer 2 features IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 features DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs


Etherlighting™
Ethernet Locating
Speed/link
Native VLAN/network
SFP+ Locating
Speed/link
Native VLAN/network


Application Requirements
UniFi Network Version 8.1.127 and later
