Ubiquiti UniFi Access G3 Intercom - Interkom, 2Mpx kamera, obousměrné audio, 7" dotykový displej, IP65, černá
Kód produktu: 526072257768
383,01 €
Skladom
Záruka bezpečného nákupu

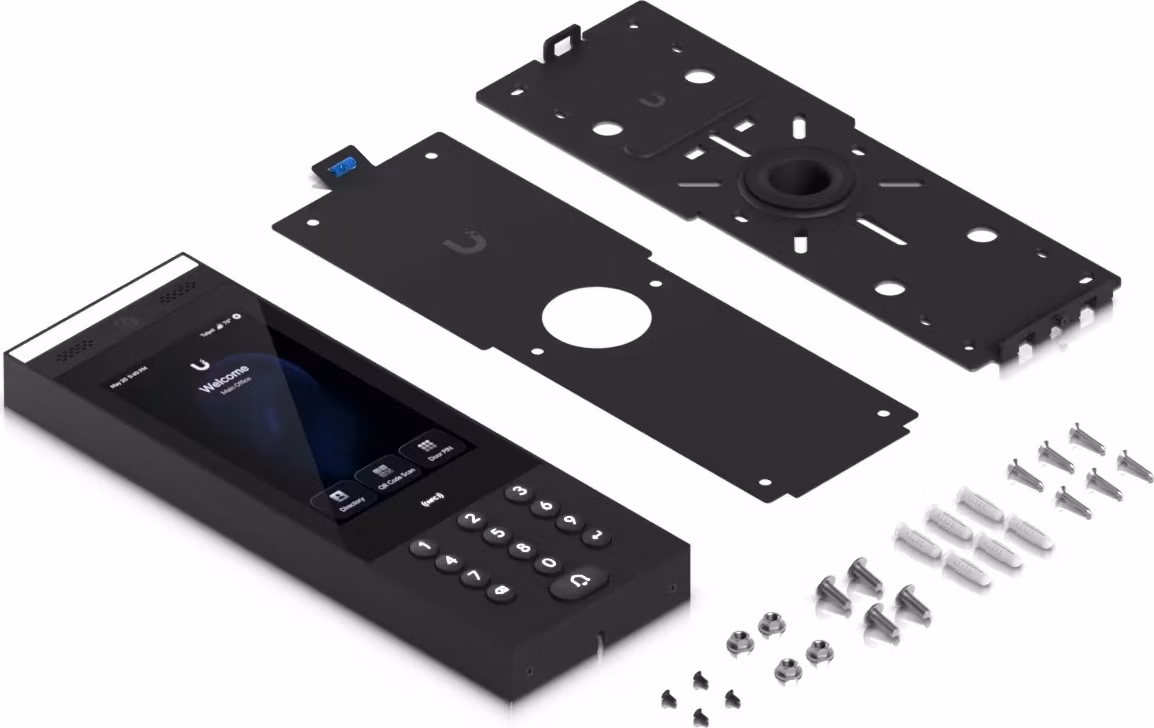

Obsah balenia
- 1x Hlavný produkt
- 1x Napájací adaptér
- 1x Užívateľská príručka
- 1x Záručný list
Popis produktu
Dveřní komunikační jednotka s četečkou karet, klávesnicí, dislayem, kamerou a funkcí TouchPass support.
| Overview | |
| Dimensions | 324.8 x 113.7 x 28.3 mm |
| Integrated Camera | Yes |
| NFC Card & Keyfob Access | Yes |
| PIN Access | Yes |
| Apple/Google Wallet | Yes |
| Mobile Unlock | Yes |
| Handwave Request to Exit | Yes |
| Two-Way Intercom & Doorbell Access | Yes |
| NDAA Compliant | Destructive attack: Level I |
| UL 294 Level | Line security: Level I |
| Endurance: Level I | |
| Standby power: Level I | |
| Weatherproofing | IP65 |
| Mechanical | |
| Weight | Device: 965 g (2.1 lb) |
| Bracket: 445 g (1 lb) | |
| Enclosure Material | Aluminum alloy, UV-stabilized polycarbonate, glass |
| Mount Material | Powder-coated stainless steel |
| Mounting | Wall mount, adapter to the gooseneck pedestal (Included) |
| Surface angle, flush mount, sunshield kit (Optional) | |
| Hardware | |
| Indoor and Outdoor Use | Yes |
| Ambient Operating Temperature | Device: -30 to 60° C (-22 to 140° F) |
| Display: -25 to 60° C (-13 to 140° F) | |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Networking Interface | (1) GbE RJ45 port |
| Connectivity | BLE 4.2 |
| NFC | |
| Power Method | PoE |
| UL 294 Power-limited Class 2 PSU | |
| UL 60950-1/62368-1 LPS/PS2 PSU | |
| Max. Power Consumption | 13W |
| Supported Voltage Range | 48V DC |
| ESD/EMP Protection | Air: ±15kV, contact: ±8kV |
| Sensors | Proximity sensor |
| ALS sensor | |
| Display | 177 mm (7") diagonal |
| Touch Screen Technology | Capacitive multi-touch |
| Display Luminance | Max. 1000 nits (Typical) |
| Screen Orientation | Portrait |
| Resolution | 1024 x 600 px |
| Microphone | Yes |
| Speaker | Yes |
| LEDs | R/G/B/W |
| Button | (1) Factory-reset |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18'') |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) |
| MIFARE Classic / MIFARE DESFIRE | |
| Sony FeliCa™ (ID only) | |
| NFC Forum tags T1T, T2T, T3T, T4T and T5T | |
| ECP 2.0 | |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. |
| The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. | |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. |
| The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. | |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-G3-Intercom, V01 |
| Software | |
| Management Application | Access |
| Software Information | The software version can be checked at https://unifi.ui.com |
