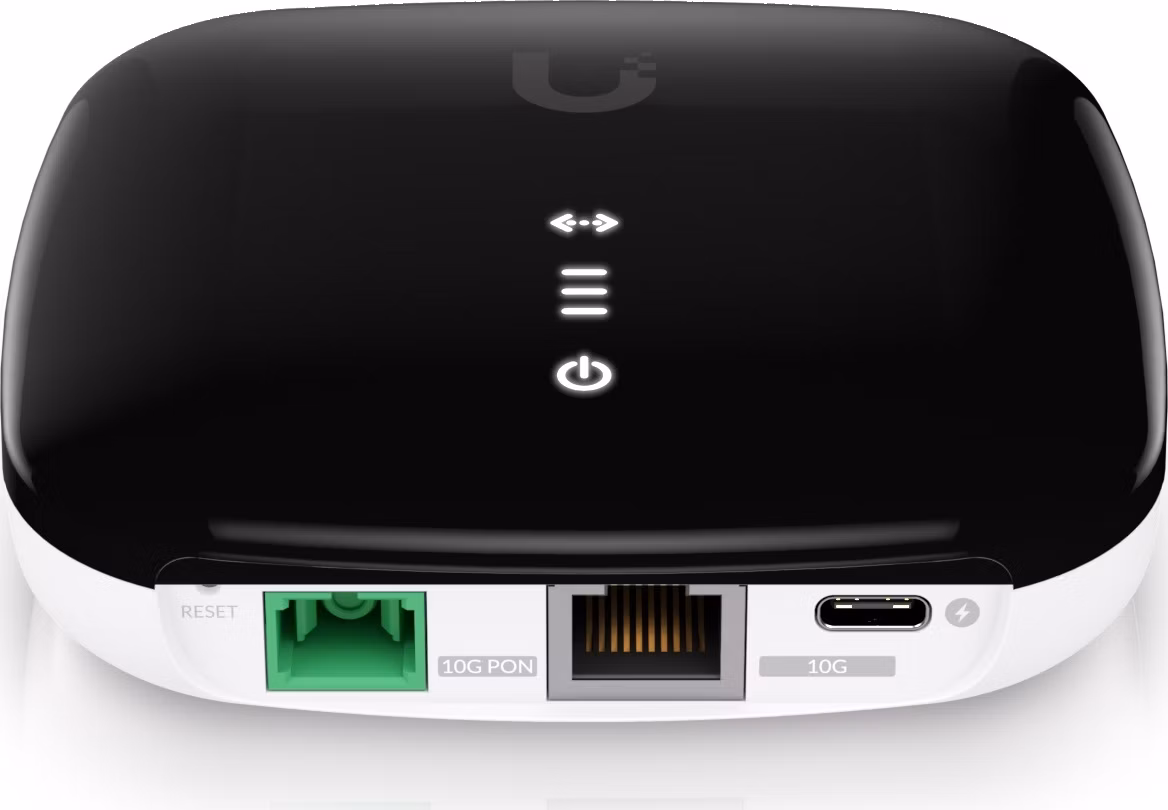

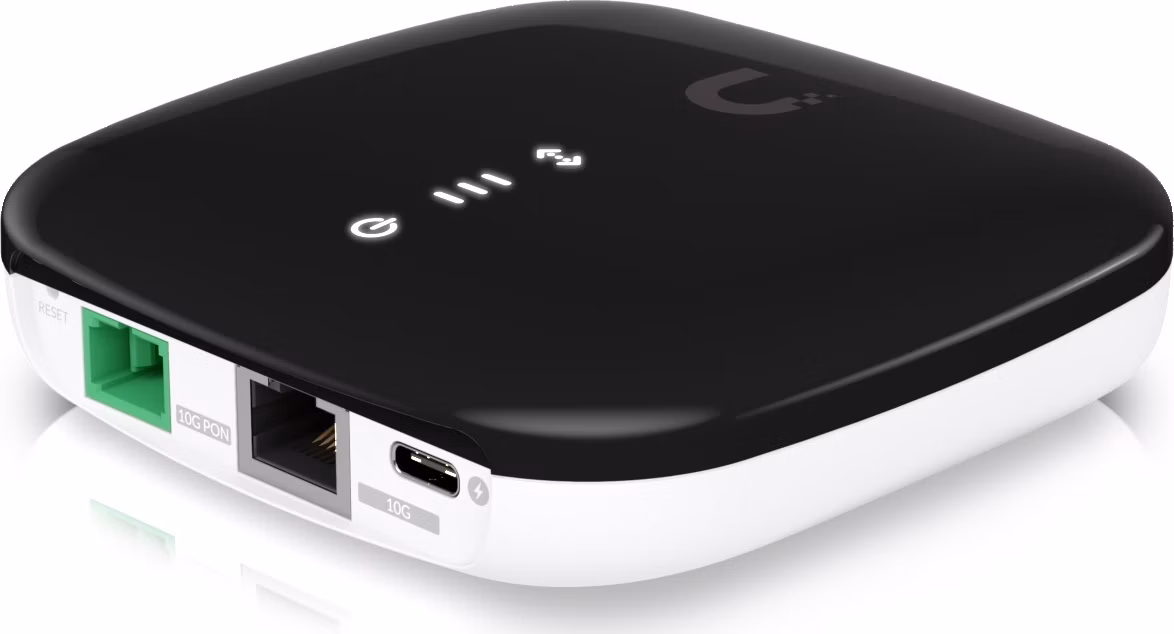

An optical network unit that can deliver 10 Gbps uplink/downlink speeds over distances up to 20 km.

(1) XGS-PON port
(1) 10GbE RJ45 LAN port

Note. This device is only compatible with the Fiber XGS OLT. It cannot be used with third-party OLTs.

Technical Specifications

Mechanical

Dimensions 100 x 100 x 27 mm (3.9 x 3.9 x 1.1")

Weight 220 g (0.49 lb)

Enclosure material UV-stabilized polycarbonate

Hardware

Networking interface (1) SC/APC, ITU-G.9807 XGSPON WAN port

(1) 100/1,000/2,500/5,000/10,000 MbE RJ45 LAN ports

Management interface Ethernet in-band

PON

Memory 256 MB DDR

Onboard flash storage 32 MB NOR

Max. power consumption 8W

Power method USB-C 5V DC, 3A

Power supply 5V DC, 3A power adapter

Supported voltage range 5V DC power adapter

Total non-blocking line rate Downstream: 9.95 Gbit/s

Upstream: 9.95 Gbit/s

Normal TX range of optical module 4 to 9dBm

Normal RX range of optical module -9 to -26dBm

Button (1) Factory reset

Ambient operating temperature -15 to 45° C (5 to 113° F)

Ambient operating humidity 10 to 95% non-condensing

Certifications CE, FCC, IC

Fiber

Operating wavelength TX: 1,270nm

RX: 1,577nm

Line code Scrambled NRZ

Physical reach 20 km

LEDs

Power White: ON

Ethernet Steady white: link up

Blinking white: activity

OFF: link down

PON status (3) signal LEDs

All-OFF: bootup

1x orange: signal too low (< -27 dbm)

1x white: signal low (>= -27 dbm)

2x white: signal good (>= -24 dbm)

3x white: signal strong (>= -12 dbm)

1x orange + 2x white: signal too strong (>= -9 dbm)

3x orange: no signal

LEDs alternate between orange + white + orange and a signal strength indicator: no authority

Software

Management application UISP: Version 1.5.7 and later
