Omada 8-Port Gigabit Easy Smart Reverse PoE Switch PORT: 7× Gigabit Passive PoE In Ports, 1× Gigabit Passive PoE Out Por
Kód produktu: TPL00119
43,15 €
Skladom
Záruka bezpečného nákupu
Obsah balenia
- 1x Hlavný produkt
- 1x Napájací adaptér
- 1x Užívateľská príručka
- 1x Záručný list
Popis produktu
TL-RP108GE
8portový gigabitový managovateľný reverznej PoE Switch
7 PoE vstupov a 1 PoE výstup 10/100/1000 Mbps RJ45 porty

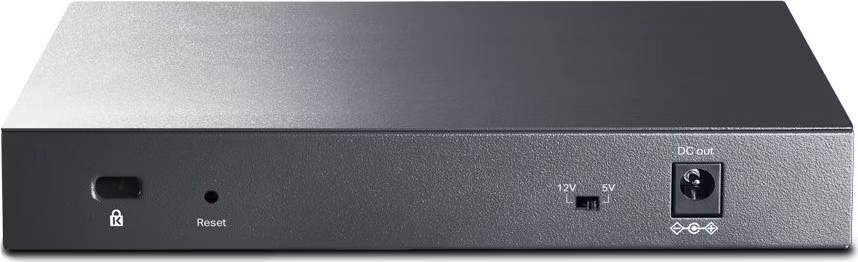

1 DC výstupný port, ktorý podporuje obe 5V a 12V prepínanie napätia
Odolný kovový obal je zárukou kvality a profesionálneho vzhľadu
Inteligentná správa pomocou webového rozhrania a stiahnutého nástroje
Green technológia znižuje spotrebu elektrickej energie
HARDWARE FEATURES
Standards and Protocols CSMA/CD
Interface 7 Passive PoE-in RJ45 Ports:
10/100/1000Mbps Auto-Negotiation
Voltage: 24/48 V (mixture is not supported)
Power pin of Ethernet cable: 4/5+ 7/8-
802.3af/B, 24V DC, 48V DC
1 Passive PoE-out RJ45 Port:
10/100/1000Mbps Auto-Negotiation
Voltage: depending on the input voltage of PoE-in ports
Power pin of Ethernet cable: 4/5+ 7/8-
1 DC Output Port:
Voltage: 5/12 V
Network Media 10Base-T:
UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100 ? STP (maximum 100 m)
100Base-TX:
UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100 ? STP (maximum 100 m)
1000Base-T:
UTP category 5e cable (maximum 100 m)
EIA/TIA-568 100 ? STP (maximum 100 m)
Packet Forwarding Rate 11.9 Mbps
Mac Address Table 4 K
Jumbo Frame 16 KB
Switching Capacity 16 Gbps
IEEE Standards IEEE802.3ab, IEEE802.3i, IEEE802.3p
IEEE802.3q, IEEE802.3x, IEEE802.3u
Data Rates Ethernet: 10 Mbps (Half Duplex), 20 Mbps (Full Duplex)
Fast Ethernet: 100 Mbps (Half Duplex), 200 Mbps (Full Duplex)
Gigabit Ethernet: 2000 Mbps (Full Duplex)
LED Indicator Power, Link/Act LED
Dimensions ( W x D x H ) 6.2 × 3.9 × 1.0 in (158 × 99.1 × 25 mm)
Max Power Consumption 3.98 W (with no PD connected)
18.01 W (24 V with PD connected)
32.74 W (48 V with PD connected)
Max Heat Dissipation 13.57 BTU/h (with no PD connected)
61.41 BTU/h (24 V with PD connected)
111.64 BTU/h (48 V with PD connected)
SOFTWARE FEATURES
Quality of Service Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Transmission Method Store-And-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents TL-RP108GE
Power Cord
Installation Guide
Rubber Feet
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
