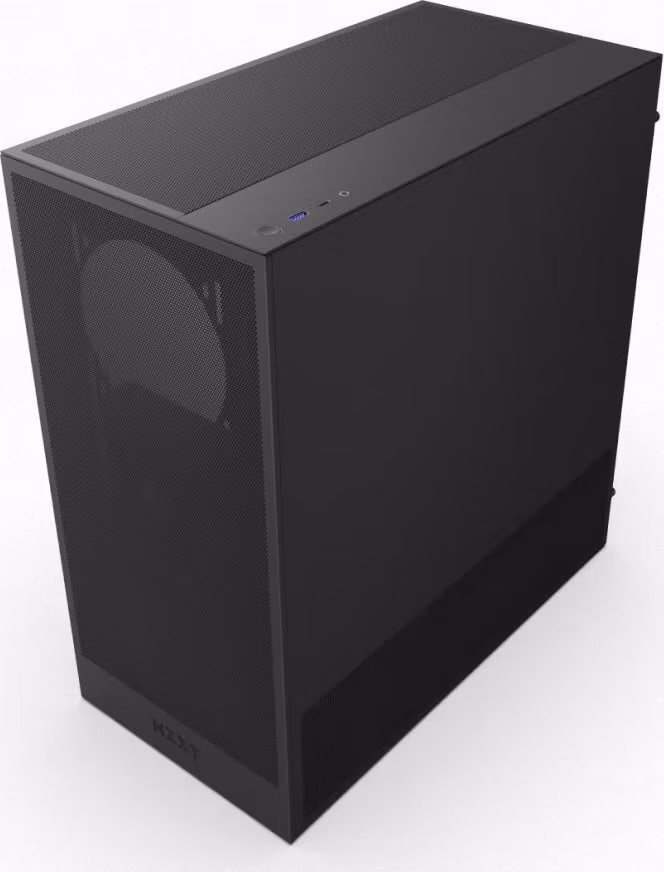

Overview Details The H5 Flow boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support—all in a compact mid-tower form factor. The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included). Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential. Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust. Equipped with two 120mm Quiet Airflow fans (CV) —one in front, one in rear—for solid out-of-the-box performance. Effortlessly route and conceal cables using the wide channels, hooks, and straps. Inside the Box H5 Flow F120Q (CV) 2x Installation accessories User guide Tech Specs Key Specs Motherboard Support:E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX Enclosure Type:Mid-Tower Case Material:SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black) Dimensions Height (with feet):465 mm / 18.31 in Width:225 mm / 8.86 in Depth:430 mm / 16.93 in Weight:7.28 kg / 16.04 lb Compatibility & Clearance CPU Cooler Height:Up to 170 mm GPU Length:Up to 410 mm PSU Length:Up to 200 mm Cable Management:Up to 28.7 mm Top Radiator:Up to 240 mm (280 mm with low-profile memory) Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness:Up to 55 mm Front Ports USB 3.2 Type-A:1 USB 3.2 Gen 2x2 Type-C (20 Gbps):1 Headset Audio Jack:1 Expansion Slots Standard:7 Vertical:0 Drive Bays 2.5":2 3.5":1 Fan Support Front:3 x 120 mm / 2 x 140 mm (1 x F120Q Case Version included) Top:2 x 120 mm / 2 x 140 mm Bottom:2 x 120 mm Rear:1 x 120 mm (1 x F120Q Case Version included) Radiator Support Front:Up to 360 mm Top:Up to 240 mm (280mm with low-profile memory only) Fan Specs Model:F120Q (Case Version) Speed:1,350 ± 150 RPM Airflow:60.2 CFM Static:1.05 mm-H2O Noise:24.1 dBA Fan Connector:3-pin General Warranty:2 years Model Number:CC-H52FW-01(White) / CC-H52FB-01 (Black) UPC:810074845908 (White) / 810074845915 (Black) EAN:5056547205847 (White) / 5056547205854 (Black)
