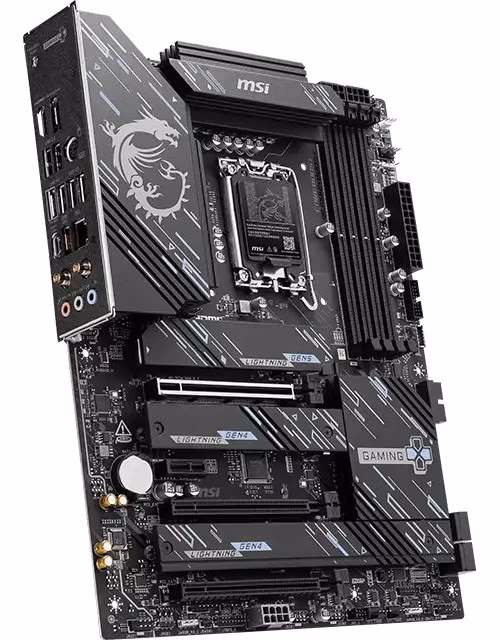

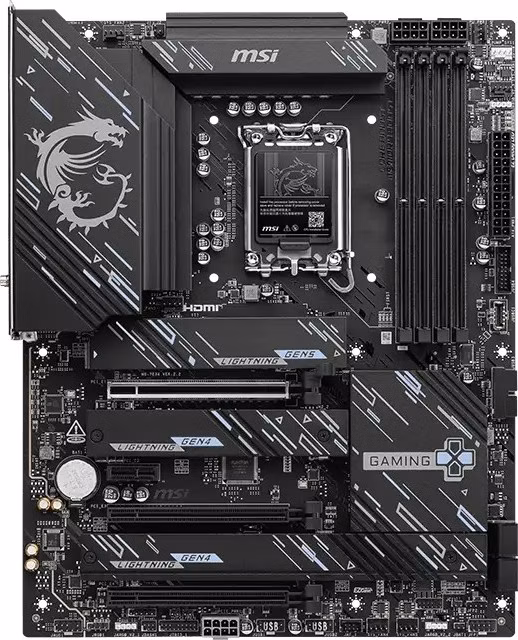

MSI Z890 GAMING PLUS WIFI6E

Chipset: INTEL Z890

Rozmerový formát: ATX 243.84mmx304.8mm

Podpora pre procesory: Intel® Core™ Ultra Processors (Series 2)

Pätica procesora: LGA 1851

Pamäť:

*4x DDR5 UDIMM, Maximum Memory Capacity 256GB

*Memory Support DDR5 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s

*Max. overclocking frequency:

*1DPC 1R Max speed up to 9200+ MT/s

*1DPC 2R Max speed up to 7200+ MT/s

*2DPC 1R Max speed up to 6400+ MT/s

*2DPC 2R Max speed up to 5600+ MT/s

*Supports Intel® POR Speed and JEDEC Speed

*Supports Memory Overclocking and Intel® XMP 3.0

*Supports Dual-Controller Dual-Channel mode

*Supports Non-ECC, Un-buffered memory

*Supports CUDIMM

Grafické porty:

1x HDMI

*Support HDMI™ 2.1, maximum resolution of 4K 60Hz

1x DisplayPort

*Support DisplayPort 1.4, maximum resolution of 4K 60Hz

Zvuková karta:

*Realtek® ALC897 Codec

*7.1-Channel High Definition Audio

Ethernet: Intel Killer E5000 5Gbps LAN

WLAN + Bluetooth: Wi-Fi 6E module

*The Wireless module je preinštalovaný v M.2 (Key-E) slot

*Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) až 2.4Gbps

*Supports 802.11 a/ b/ g/ n/ ac/ ax

*Supports Bluetooth® 5.3**, FIPS, FISMA

Rozširujúce sloty:

3x PCI-E x16 slot

1x PCI-E x1 slot

*PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

*PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)

*PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

*PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)

RAID radič: RAID 0, RAID 1, RAID 5, RAID 10

Úložný priestor:

4x M.2

*M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices

*M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices

*M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

*M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

4x SATA 6G

USB:

Zadné USB

*4x USB 2.0

*2x USB 5Gbps Type A

*1x USB 10Gbps Type A

*1x USB 10Gbps Type C

Predné USB

*4x USB 2.0

*4x USB 5Gbps Type A

*1x USB 20Gbps Type C

Interné porty:

Napájanie

*1× Power Connector (ATX_PWR)

*2× Power Connector (CPU_PWR)

*1× Power Connector (PCIE_PWR 8pin)

*1× CPU Fan

*1× Combo Fan (Pump_Sys Fan)

*5× System Fan

USB

*4× USB 2.0 ports

*4× USB 5Gbps Type-A ports

*1× USB 20 Gbps Type-C port

Ostatné

*1× EZ Conn-header (JAF_1)

*2× Front Panel (JFP)

*1× Chassis Intrusion (JCI)

*1× Front Audio (JAUD)

*1× Tuning Controller connector (JDASH)

*3× Addressable V2 RGB LED konektory (JARGB_V2)

*1× RGB LED connector (JRGB)

*1× TPM pin header (TPM 2.0)

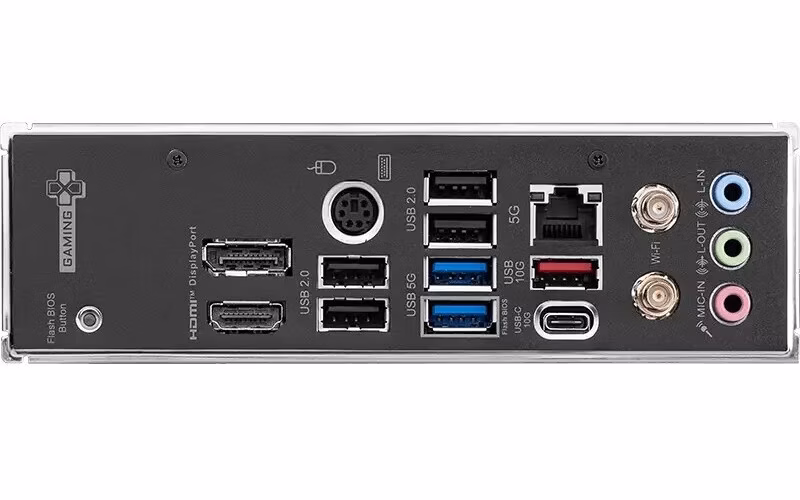

Porty na zadnom paneli:

*DisplayPort

*Keyboard / Mouse

*USB 2.0

*5G LAN

*Wi-Fi / Bluetooth

*Flash BIOS Button

*HDMI™

*USB 2.0

*USB 5Gbps Type A ports

*USB 10 Gbps Type C ports

*USB 10 Gbps Type A ports

*Audio Connectors

OS: Windows 11 64-bit
