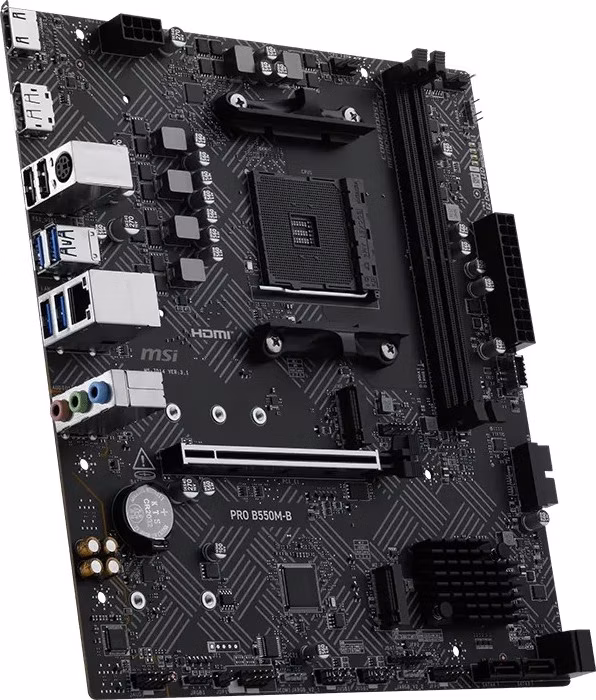

MSI PRE B550M-B/AM4/mATX

MSI PRE B550M-B

Chipset: AMD B550

Rozmerový formát: mATX 220mmx243.84mm

Podpora pre procesory: AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series a 3000 G-Series desktop processors

Pätica procesora: AM4

Pamäť:

*2x DDR4, Maximum Memory Capacity 64GB

*Memory Support DDR4 2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400/4600+ MHz by A-XMP OC

*Max. overclocking:

*1DPC 1R Max speed up to 4600+ MT/s

*1DPC 2R Max speed up to 3866+ MT/s

*Supports JEDEC Speed

*Supports Dual-Channel mode

*Supports non-ECC, un-buffered memory

*Supports Memory Overclocking by A-XMP OC mode

Grafické porty:

1x HDMI

*Support HDMITM 2.1, maximum resolution of 4K 60Hz

1x DisplayPort

*Supports DP 1.2, maximum resolution of 4K 60Hz

Zvuková karta:

*Realtek® ALC897 Codec

*7.1-Channel High Definition Audio

Ethernet: Realtek® RTL8111H 1Gbps LAN

Rozširujúce sloty:

1x PCI-E x16 slot

*PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

RAID radič: RAID 0, RAID 1, RAID 5, RAID 10

Úložný priestor:

2x M.2

*M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

*M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 22110/2280 devices

4x SATA 6G

USB:

Zadné USB

*2x USB 2.0

*4x USB 5Gbps Type A

Predné USB

*4x USB 2.0

*2x USB 5Gbps Type A

*1x USB 5Gbps Type C

Interné porty:

Napájanie

*1× Power Connector (ATX_PWR)

*1× Power Connector (CPU_PWR)

*1× CPU Fan

*1× System Fan

USB

*4× USB 2.0 ports

*2× USB 5Gbps Type-A ports

*1× USB 5Gbps Type-C port

Ostatné

*2× Front Panel (JFP)

*1× Chassis Intrusion (JCI)

*1× Front Audio (JAUD)

*1× COM Port (JCOM)

*3× Addressable V2 RGB LED konektory (JARGB_V2)

*1× RGB LED connector (JRGB)

*1× TPM pin header (TPM 2.0)

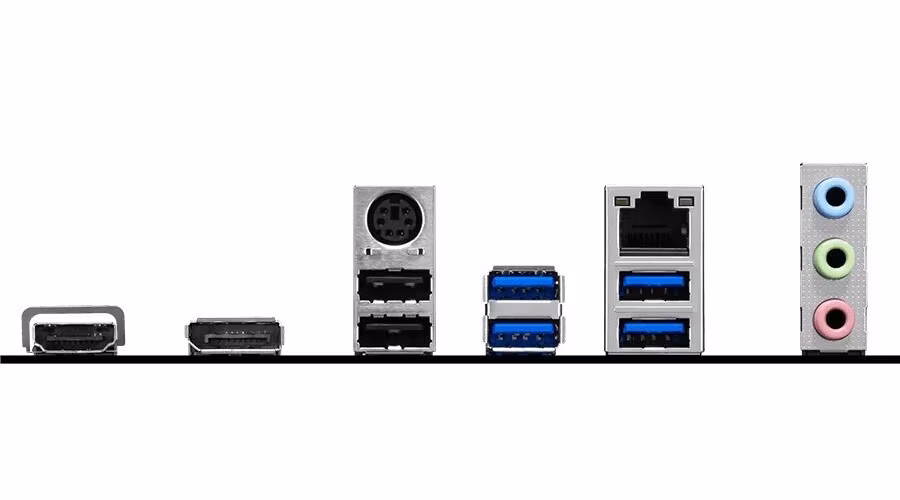

Porty na zadnom paneli:

*HDMI

*DisplayPort

*Keyboard / Mouse

*USB 5Gbps Type-A

*LAN Port

*Audio connectors

*USB 2.0

*USB 5Gbps Type-A

OS: Windows 11 64-bit, Windows 10 64-bit
