MSI PRE A620AM-G EVO WIFI/AM5/mATX

MSI PRE A620AM-G EVO WIFI

Chipset: AMD A620A

Rozmerový formát: mATX 226mmx243.84mm

Podpora pre procesory: AMD Ryzen™ 9000/8000/7000 Series Desktop Processors

Pätica procesora: AM5

Pamäť:

*2x DDR5 UDIMM, Maximum Memory Capacity 128GB

*Memory Support DDR5 7200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

*Max. overclocking:

*1DPC 1R Max speed up to 7200+ MT/s

*1DPC 2R Max speed up to 6400+ MT/s

*Supports AMD POR Speed and JEDEC Speed

*Supports Memory Overclocking and AMD EXPO™

*Supports Dual-Channel mode

*Supports non-ECC, un-buffered memory

Grafické porty:

1x HDMI

*Support HDMITM 2.1, maximum resolution of 4K 60Hz

1x DisplayPort

*Support DisplayPort 1.4, maximum resolution of 4K 60Hz

Zvuková karta:

*Realtek® ALC897 Codec

*7.1-Channel High Definition Audio

Ethernet: Realtek® RTL8125D 2.5G LAN

WLAN + Bluetooth: Wi-Fi 6E

*The Wireless module je preinštalovaný v M.2 (Key-E) slot

*Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz* (160MHz) až 2.4Gbps

*Supports 802.11 a/ b/ g/ n/ ac/ ax

*Supports Bluetooth® 5.3**, FIPS, FISMA

Rozširujúce sloty:

*1x PCI-E x16 slot

*1x PCI-E x1 slot

*PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

*PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

RAID radič: RAID 0, RAID 1, RAID 10

Úložný priestor:

2x M.2

*M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

*M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6G

M2_2 slot

*Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/8700/8600/8400/7000 Series processors)

*Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)

USB:

Zadné USB

*2x USB 2.0

*4x USB 5Gbps Type A

Predné USB

*4x USB 2.0

*2x USB 5Gbps Type A

*1x USB 5Gbps Type C

Interné porty:

Napájanie

*1× Power Connector (ATX_PWR)

*1× Power Connector (CPU_PWR)

*1× CPU Fan

*2× System Fan

USB

*4× USB 2.0 ports

*2× USB 5Gbps Type-A ports

*1× USB 5Gbps Type-C port

Ostatné

*2× Front Panel (JFP)

*1× Chassis Intrusion (JCI)

*1× Front Audio (JAUD)

*1× COM Port (JCOM)

*3× Addressable V2 RGB LED konektory (JARGB_V2)

*1× RGB LED connector (JRGB)

*1× TPM pin header (TPM 2.0)

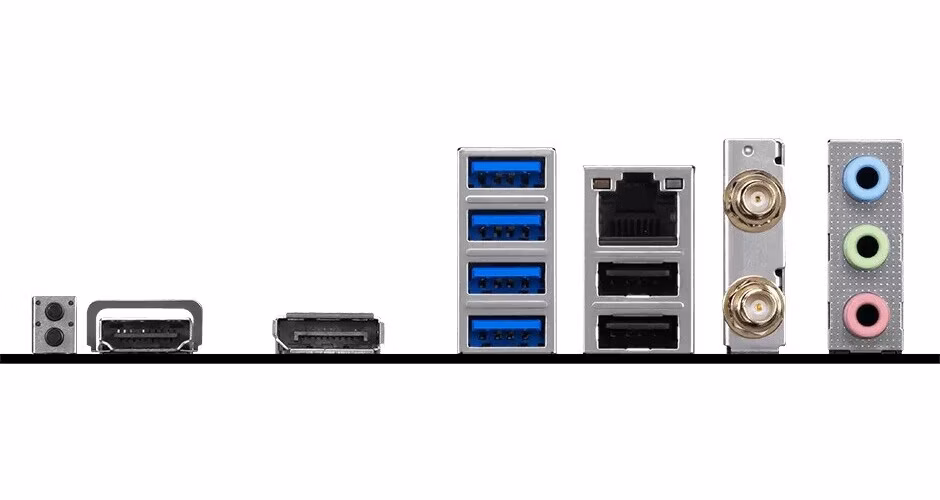

Porty na zadnom paneli:

*Clear CMOS Button

*HDMI

*DisplayPort

*USB 5Gbps Type-A

*2.5G LAN

*Wi-Fi / Bluetooth

*Audio connectors

*Flash BIOS Button

*USB 2.0

OS: Windows 11 64-bit, Windows 10 64-bit
