MSI MB Sc LGA1851 PRO B860M-P WIFI6E, Intel B860, 4xDDR5, WiFi, 2xDP, 1xHDMI, 1xVGA, mATX

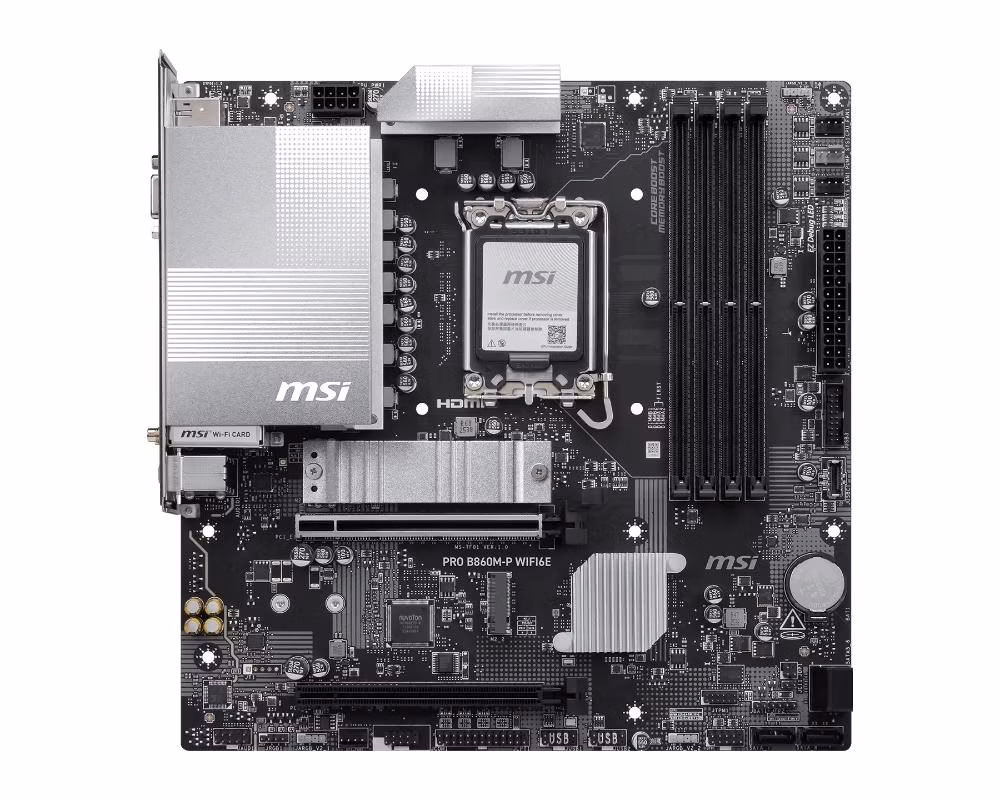

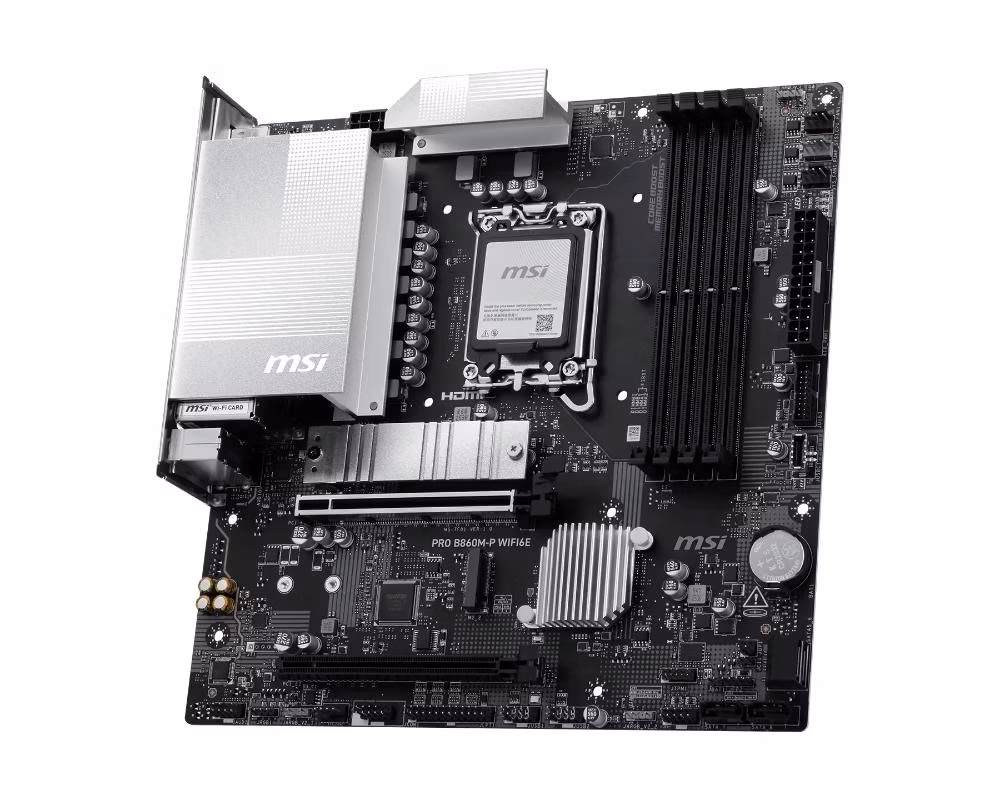

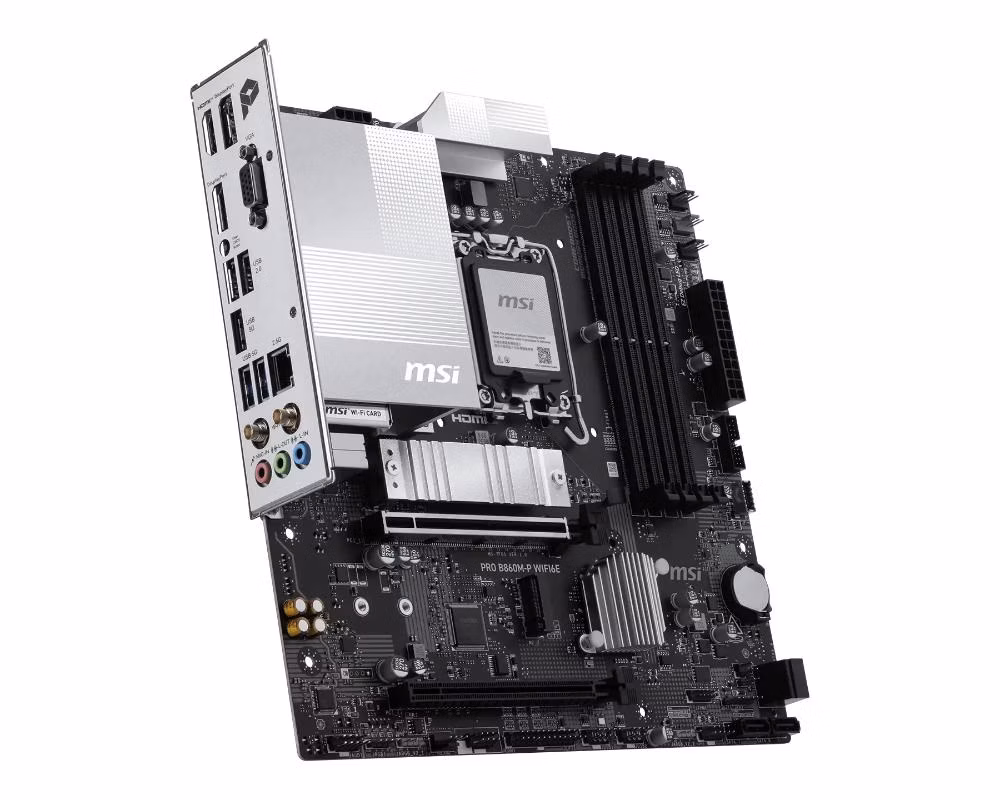

MSI PRO B860M-P WIFI6E

Chipset: INTEL B860

Rozměrový formát: mATX 243.84mmx243.84mm

Podpora pro procesory: Supports Intel® Core™ Ultra Processors (Series 2)

Patice procesoru: LGA 1851

Paměť:

*4x DDR5 UDIMM, Maximum Memory Capacity 256GB

*Memory Support DDR5 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s

*Max. overclocking:

*1DPC 1R Max speed up to 8800+ MT/s

*1DPC 2R Max speed up to 7200+ MT/s

* 2DPC 1R Max speed up to 6400+ MT/s

*2DPC 2R Max speed up to 5600+ MT/s

*Supports Intel® POR Speed and JEDEC Speed

*Supports Memory Overclocking and Intel® XMP 3.0

*Supports Dual-Controller Dual-Channel mode

*Supports Non-ECC, Un-buffered memory

*Supports CUDIMM

Grafické porty:

1x HDMI

*Support HDMI™ 2.1 port with TMDS, maximum resolution of 4K 60Hz

2x DisplayPort

*Support DisplayPort 1.4 port with HBR2, maximum resolution of 4K 60Hz

1x VGA

*Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

Zvuková karta:

*Realtek® ALC897 Codec

*7.1-Channel High Definition Audio

Ethernet: Realtek 8125 2.5Gbps LAN

WLAN + Bluetooth: Wi-Fi 6E

*The Wireless module is pre-installed in the M.2 (Key-E) slot

*Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

*Supports 802.11 a/ b/ g/ n/ ac/ ax

*Supports Bluetooth® 5.3**, FIPS, FISMA

Rozšiřující sloty:

2x PCI-E x16 slot

*PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

*PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)

RAID řadič: RAID 0, RAID 1, RAID 5, RAID 10

Úložný prostor:

2x M.2

*M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices

*M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6G

USB:

Zadní USB

*2x USB 2.0

*3x USB 5Gbps Type A

Přední USB

*4x USB 2.0

*2x USB 5Gbps Type A

*1x USB 5Gbps Type C

Interní porty:

Napájení

*1× Power Connector (ATX_PWR)

*1× Power Connector (CPU_PWR)

*1× CPU Fan

*1× Combo Fan (Pump_Sys Fan)

*2× System Fan

USB

*4× USB 2.0 ports

*2× USB 5Gbps Type-A ports

*1× USB 5Gbps Type-C port

Ostatní

*2× Front Panel (JFP)

*1× Chassis Intrusion (JCI)

*1× Front Audio (JAUD)

*1× Printer Port (JLPT)

*1× COM Port (JCOM)

*3× Addressable V2 RGB LED connectors (JARGB_V2)

*1× RGB LED connector (JRGB)

*1× TPM pin header (TPM 2.0)

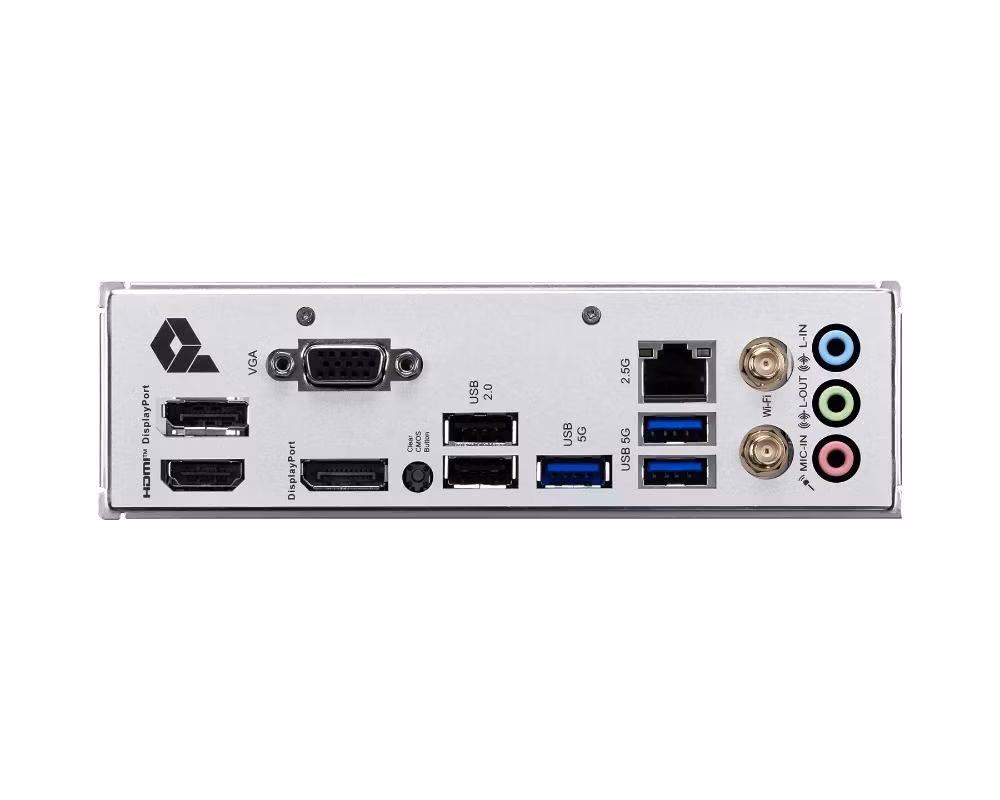

Porty na zadním panelu:

*DisplayPort

*VGA

*USB 2.0

*USB 5Gbps Type-A

*2.5G LAN

*Wi-Fi / Bluetooth

*Audio Connectors

*HDMI™

*DisplayPort

*Clear CMOS Button

*USB 5Gbps Type-A

OS: Windows 11 64-bit
