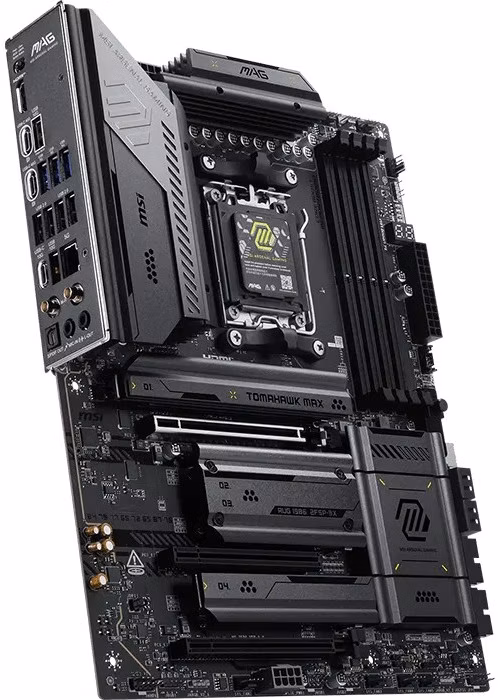

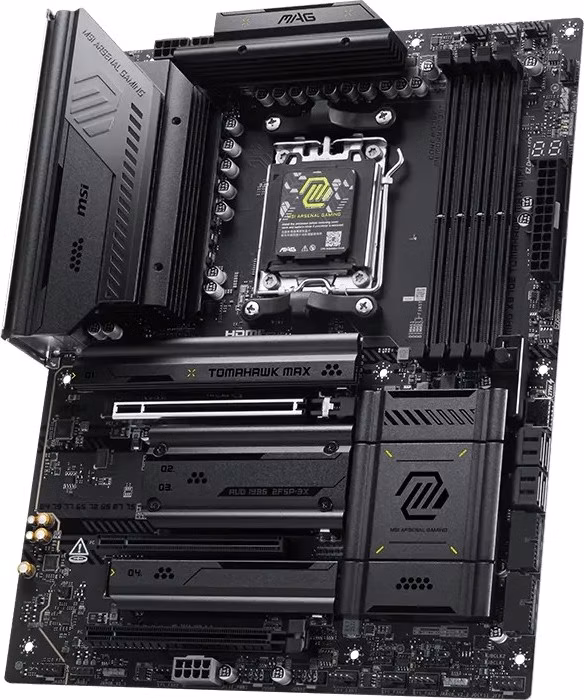

MSI MAG X870E TOMAHAWK MAX WIFI/AM5/ATX

MSI MAG X870E TOMAHAWK MAX WIFI

Chipset: AMD X870E

Rozmerový formát: ATX 243.84mmx304.8mm

Podpora pre procesory: AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors

Pätica procesora: AM5

Pamäť:

*4x DDR5 UDIMM, Maximum Memory Capacity 256GB

*Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

*Ryzen™ 9000 Series Processors max. overclocking frequency:

*1DPC 1R Max speed up to 8400+ MT/s

*1DPC 2R Max speed up to 6400+ MT/s

*2DPC 1R Max speed up to 6400+ MT/s

*2DPC 2R Max speed up to 6400+ MT/s

*Supports AMD POR Speed and JEDEC Speed

*Supports Memory Overclocking and AMD EXPO™

*Supports Dual-Channel mode

*Supports Non-ECC, Un-buffered memory

Grafické porty:

1x HDMI

*Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz

2x Type-C DisplayPort

*USB4 port, podporujúci DisplayPort 1.4 s HBR3 cez USB Type-C, maximum resolution of 4K 60Hz

Zvuková karta:

*Realtek® ALC4080 Codec

*7.1-Channel USB High Performance Audio

*Supports up to 32-bit/384kHz playback on front panel

*Supports S/PDIF output

Ethernet: 1x Realtek 8126 5G LAN

WLAN + Bluetooth: Wi-Fi 7

*The Wireless module je preinštalovaný v M.2 (Key-E) slot

*Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz* (320MHz) až 5.8Gbps

*Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

*Supports Bluetooth® 5.4**, MLO, 4KQAM

Rozširujúce sloty:

3x PCI-E x16 slot

*PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

*PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

*PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E1 slot

*Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)

*Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)

*Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

RAID radič: RAID 0, RAID 1, RAID 5, RAID 10

Úložný priestor:

4x M.2

*M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices

*M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices

*M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

*M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6G

M.2_1 slot (From CPU)

*Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)

*Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

M.2_2 slot (From CPU)

*Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)

*Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)

USB:

Zadné USB

*4x USB 2.0

*3x USB 5Gbps Type A

*2x USB 10Gbps Type A

*1x USB 10Gbps Type C

*2x USB 40Gbps Type C

Predné USB

*4x USB 2.0

*4x USB 5Gbps Type A

*1x USB 20Gbps Type C

Interné porty:

Napájanie

*1× Power Connector (ATX_PWR)

*2× Power Connector (CPU_PWR)

*1× Power Connector (PCIE_PWR 8pin)

*1× CPU Fan

*1× Combo Fan (Pump_Sys Fan)

*6× System Fan

USB

*4× USB 2.0 ports

*4× USB 5Gbps Type-A ports

*1× USB 20 Gbps Type-C port

Ostatné

*1× EZ Conn-header (JAF_2)

*2× Front Panel (JFP)

*1× Chassis Intrusion (JCI)

*1× Front Audio (JAUD)

*3× Addressable V2 RGB LED konektory (JARGB_V2)

*1× RGB LED connector (JRGB)

*1× TPM pin header (TPM 2.0)

*2× Direct OC Jumper (JBCLK)

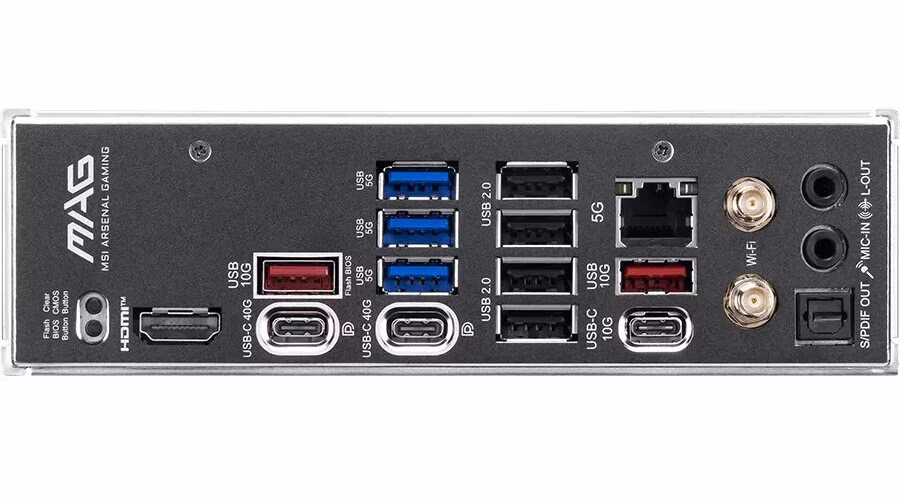

Porty na zadnom paneli:

*Clear CMOS Button

*USB 10Gbps Type-A

*USB 5Gbps Type-A

*USB 2.0

*5G LAN

*Wi-Fi / Bluetooth

*Audio connectors

*Flash BIOS Button

*HDMI

*USB 40Gbps Type-C

*USB 10Gbps Type-C

*USB 10Gbps Type-A

*Optical S/PDIF-OUT

OS: Windows 11 64-bit
