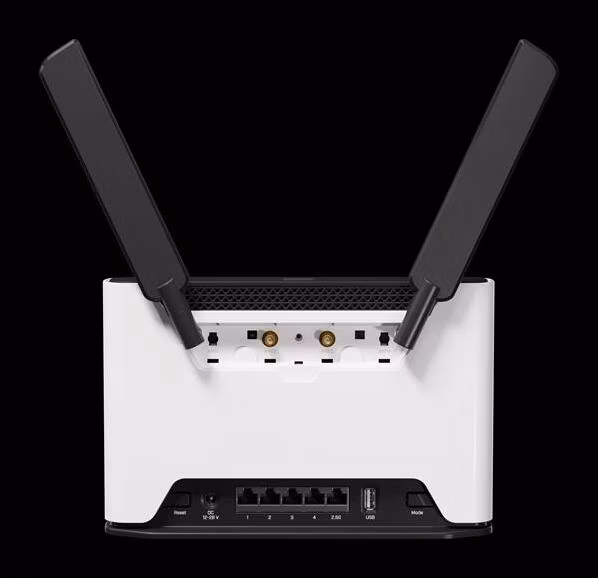

MIKROTIK Chateau LTE18 ax with RouterOS L4 license, International version (EU)

Specifications
Details
Product code S53UG+5HaxD2HaxD-TC&EG18-EA
Architecture ARM 64bit
CPU IPQ-6010
CPU core count 4
CPU nominal frequency auto (864 -1800) MHz
Switch chip model IPQ-6010
Dimensions 240 x 156 x 44 mm
RouterOS license 4
Operating System RouterOS v7
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 65°C
IPsec hardware acceleration Yes
Suggested price $299.00
Powering
Details
Number of DC inputs 1 (DC jack)
DC jack input Voltage 12-28 V
Max power consumption 19 W
Max power consumption without attachments 16 W
Cooling type Passive
Mobile
Details
3G Category R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
3G bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category 18 (1.2Gbps Downlink, 150Mbps Uplink)
MIMO DL 4x4
MIMO UL 1x1
LTE FDD bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
TAC 86981604
Wireless specifications
Details
Wireless 2.4 GHz Max data rate 574 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz 3
Wireless 2.4 GHz chip model QCN-5022
Wireless 2.4 GHz generation Wi-Fi 6
Wireless 5 GHz Max data rate 1200 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac/ax
Antenna gain dBi for 5 GHz 6
Wireless 5 GHz chip model QCN-5052
Wireless 5 GHz generation Wi-Fi 6
Ethernet
Details
10/100/1000 Ethernet ports 4
Number of 2.5G Ethernet ports 1
Peripherals
Details
Number of SIM slots 1 Modem (Micro SIM)
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Other
Details
PCB temperature monitor Yes
Voltage Monitor Yes
Mode button Yes
Certification & Approvals
Details
Certification CE, EAC, ROHS
IP 20
Wireless specifications
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 23 -100
11MBit/s 23 -94
6MBit/s 24 -96
54MBit/s 21 -80
MCS0 24 -96
MCS7 20 -75
MCS9 19 -70
MCS11 17 -67
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 24 -96
54MBit/s 21 -80
MCS0 24 -96
MCS7 20 -75
MCS9 19 -70
MCS11 17 -67
