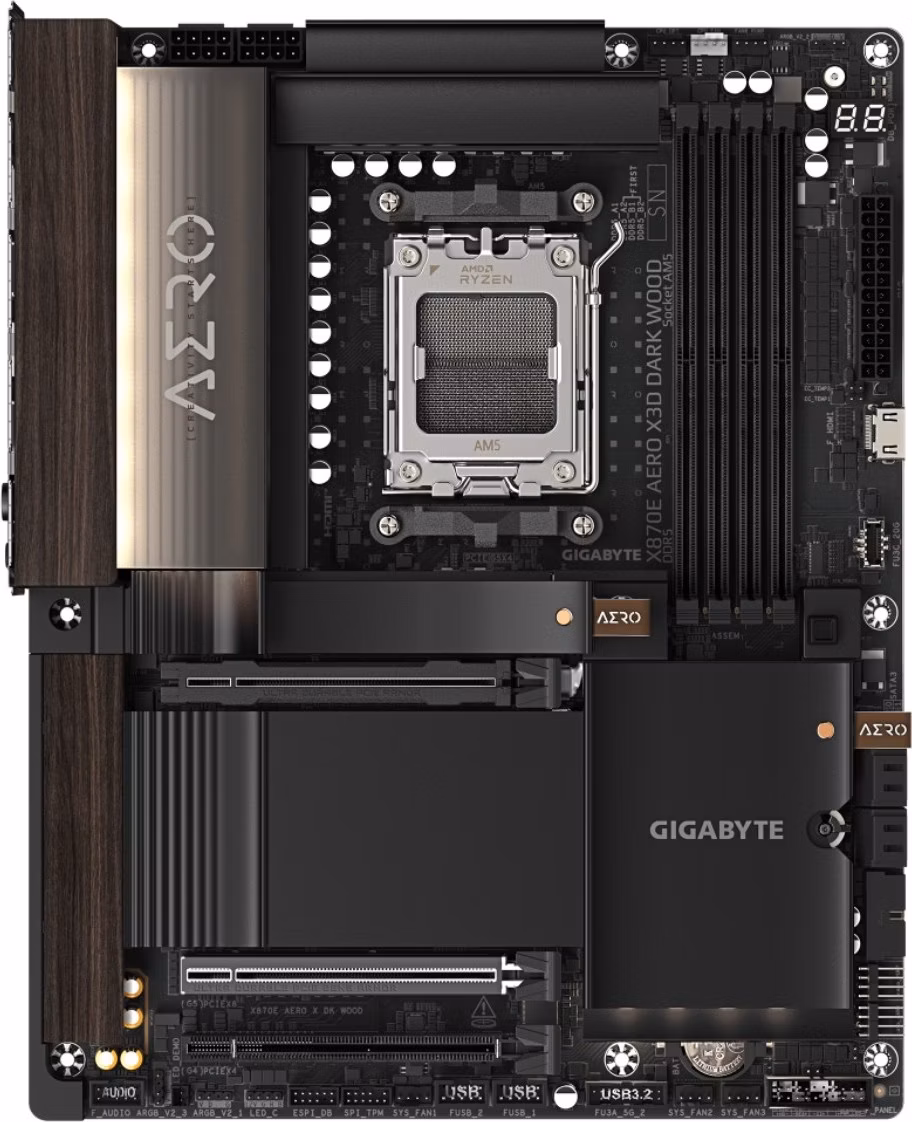

Gigabyte X870E AERO X3D DARK

Chipset: AMD X870E

Rozmerový formát: ATX Form Factor; 30.5cm x 24.4cm

Podpora pre procesory:

*AMD Ryzen 9000 Series Processors

*AMD Ryzen 8000 Series Processors

*AMD Ryzen 7000 Series Processors

Pätica procesora: AM5

Pamäť:

*Podpora pre: DDR5 9000(OC) /8800(OC) /8600(OC) /8400(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7200(OC) 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules.

*Podpora pre DDR5 5200/4800 MT/s memory modules

*4x DDR5 DIMM sloty s podporou až 256GB (64GB každý slot) pamäte

*Dual channel architektúra

*Podpora pre non-ECC Un-buffered DIMM pamäťové moduly

*Podpora pre EXPO a XMP

Zvuková karta:

*Realtek ALC1220 CODEC

*High Definition Audio 2/4/5.1/7.1-channel

*Podpora pre S/PDIF Out=

Ethernet: 2 x Realtek® 5 GbE LAN chips (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

WLAN + Bluetooth: MediaTek Wi-Fi 7 MT7927, RZ738

*802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

*BLUETOOTH 5.4

*Podpora pre 11be 320MHz wireless štandard

Rozširujúce sloty:

*1 x PCI Express x16 slot (PCIEX16), integrovaný v CPU

*1 x PCI Express x16 slot (PCIEX8), integrovaný v CPU

*1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) chipset

RAID radič: RAID 0, RAID 1, RAID 5, RAID 10

Úložný priestor:

*1 x M.2 konektor (M2A_CPU), integrovaný v CPU, supporting Socket 3, M kľúč, typ 2580/2280 SSDs

*1 x M.2 konektor (M2B_CPU), integrovaný v CPU, supporting Socket 3, M kľúč, typ 22110/2280 SSDs

*2 x M.2 konektory (M2C_SB, M2D_SB), integrované v chipsete, podporujúce Socket 3, M kľúč, typ 22110/2280 PCIe 4.0 x4/x2 SSDs

*4 x SATA 6Gb/s konektory

USB:

CPU+ASMedia USB4® controller:

*2 x USB4® USB Type-C® porty na back panel

CPU:

*1 x USB 3.2 Gen 2 Type-A port (red) na zadnom paneli

Chipset+USB 3.2 Gen 1 Hub:

* 4 x USB 3.2 Gen 1 ports dostupný cez vnútorné USB headers

Chipset:

*2 x USB Type-C® porty, s USB 3.2 Gen 2x2 support (1 port na back panel, 1 port dostupný cez internal USB header)

*4 x USB 3.2 Gen 2 Type-A porty (red) on the back panel

*3 x USB 3.2 Gen 1 ports on the back panel

*4 x USB 2.0/1.1 ports dostupná cez vnútorné USB headers

Interné porty:

Napájanie

*1× 24-pin ATX main power connector

*2× 8-pin ATX 12V power connectors

*1× CPU fan header

*1× CPU fan / water cooling pump header

*4× system fan headers

*2× system fan / water cooling pump headers

Súvisiace s úložiskom

*4× M.2 Socket 3 connectors

*4× SATA 6Gb/s connectors

USB

*1× USB Type-C header, USB 3.2 Gen 2x2

*2× USB 3.2 Gen 1 headers

*2× USB 2.0/1.1 headers

Ostatné

*3× addressable RGB Gen2 LED strip headers

*1× RGB LED strip header

*1× front panel header

*1× front panel audio header

*1× noise detection header

*1× Trusted Platform Module header

*1× HDMI port

*1× reset jumper

*1× Clear CMOS jumper

*2× temperature sensor headers

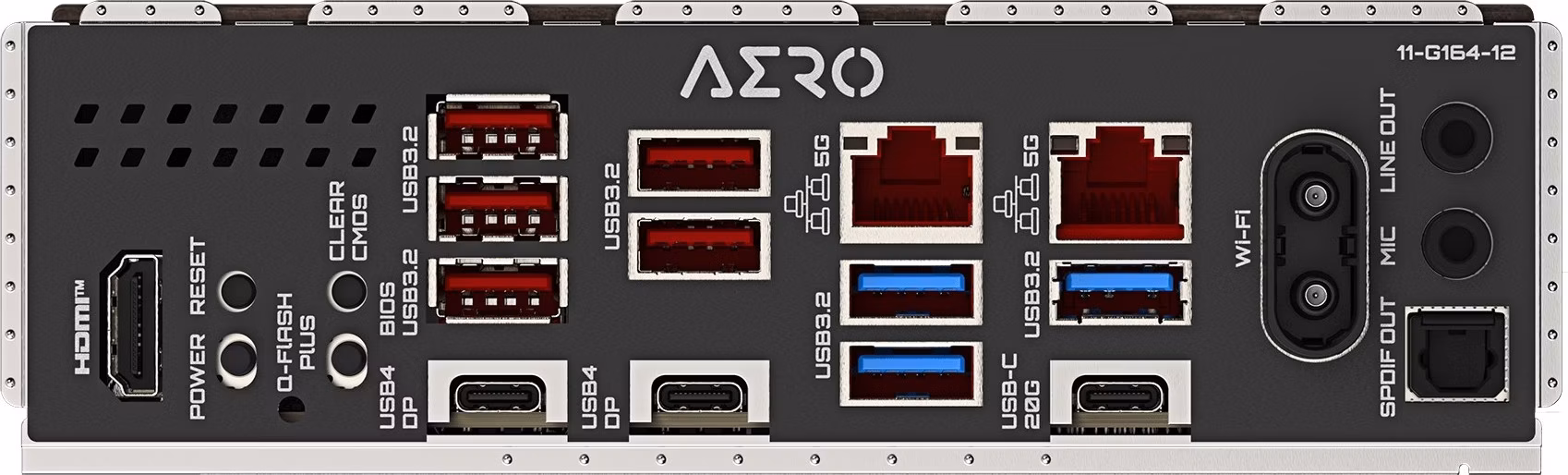

Porty na zadnom paneli:

*1 x Q-Flash Plus button

*1 x Clear CMOS button

*1 x power button

*1 x reset button

*1 x HDMI port (Note)

*2 x USB4® USB Type-C® ports (DisplayPorts (Note))

*1 USB Type-C® port, s USB 3.2 Gen 2x2 support

*5 x USB 3.2 Gen 2 Type-A ports (red)

*3 x USB 3.2 Gen 1 ports

*2 x RJ-45 ports

*2 x antenna connectors (2T2R)

*2 x audio jacks

*1 x optický S/PDIF Out connector

BIOS:

*1 x 512 Mbit flash

*Use of licensed AMI UEFI BIOS

*PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

H/W Monitoring:

*Voltage detection

*Temperature detection

*Fan speed detection

*Water cooling flow rate detection

*Fan fail warning

*Fan speed control

OS: Podpora pre Windows 11 64-bit
