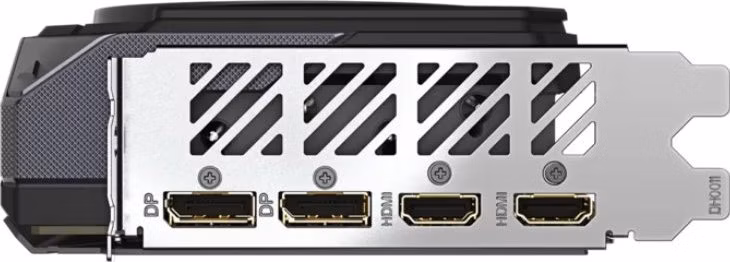

FEATURES Powered by Radeon™ RX 9070 GRE Integrated with 12GB GDDR6 192bit memory interface WINDFORCE cooling system Hawk fan Server-grade Thermal conductive gel RGB Lighting Dual BIOS (Performance / Silent) Reinforced structure CORE CLOCK Boost Clock* : up to 2920 MHz Game Clock* : up to 2340 MHz Graphics Processing Radeon™ RX 9070 GRE Core Clock Boost Clock* : up to 2920 MHz Game Clock* : up to 2340 MHz Stream Processors 3072 Memory Clock 18 Gbps Memory Size 12GB Memory Type GDDR6 Memory Bus 192 bit Card Bus PCI-E 5.0 Digital max resolution 7680 x 4320 Multi-view 4 Card size L=288 W=132 H=50 mm PCB Form ATX DirectX DirectX 12 API OpenGL OpenGL 4.6 Recommended PSU 750W Power Connectors 8 pin*2 Output DisplayPort 2.1a x2 HDMI 2.1b x2 Accessories Quick guide Note * “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. GD-151 * “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147
