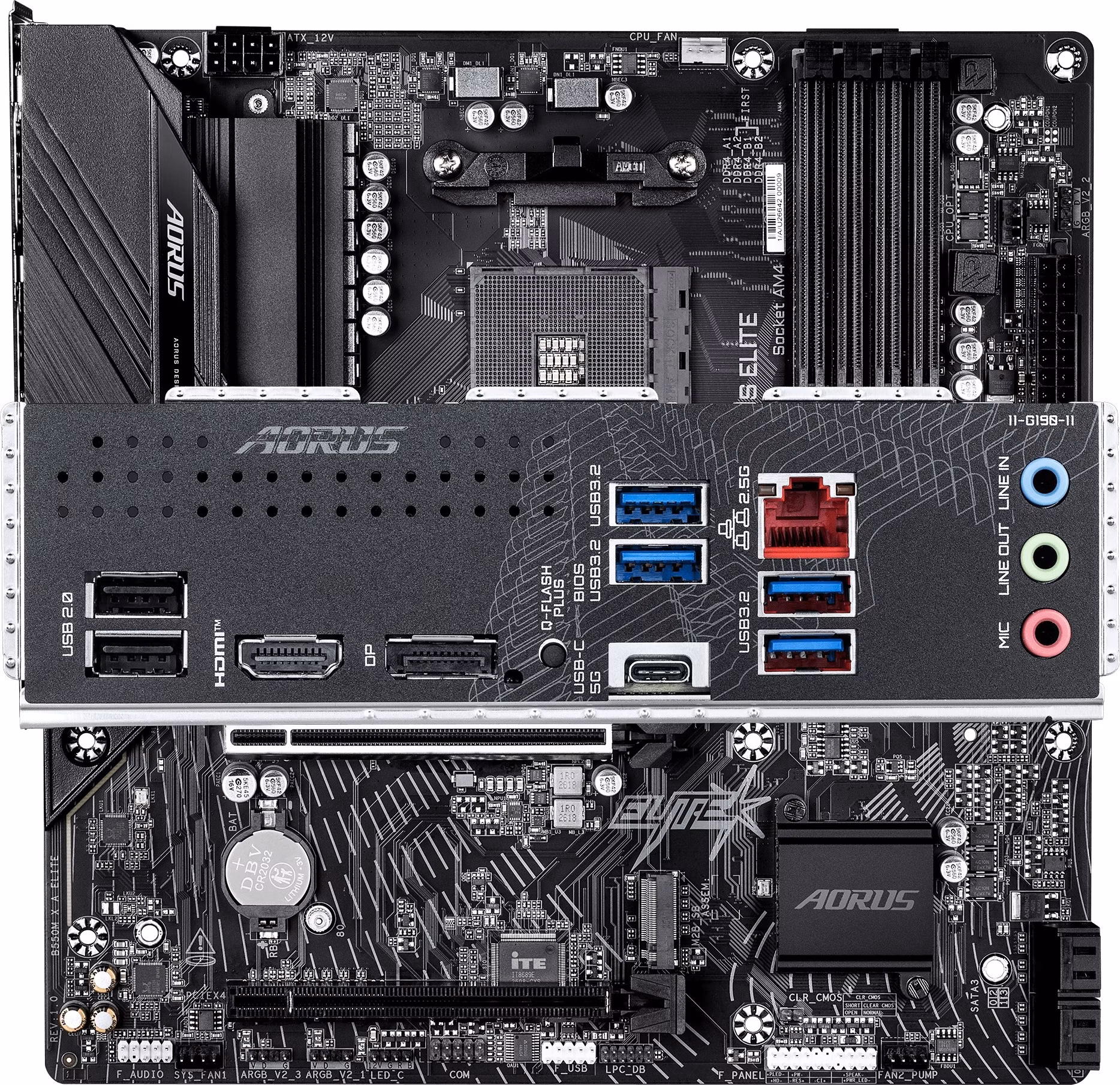

Gigabyte B550 X AORUS ELITE

Chipset: AMD B550 Rozmerový formát: Micro ATX Form Factor; 24.4cm x 24.4cm

Podpora pre procesory:

*AMD Ryzen™ 5000 Series Processors

*AMD Ryzen™ 5000 G-Series Processors

*AMD Ryzen™ 4000 G-Series Processors

*AMD Ryzen™ 3000 G-Series Processors

*AMD Ryzen™ 3000 Series Processors

Pätica procesora: AM4

Pamäť:

*4x DDR4 DIMM sloty podporujúce až 128GB (32GB každý slot) pamäte

*Podpora pre DDR4 3200/2933/2667/2400/2133 MT/s modul

*Dual channel memory architecture

*Podpora pre ECC Un-buffered DIMM 1Rx8/2Rx8 moduly

*Podpora pre non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 moduly

*Podpora pre XMP

Grafické porty: Integrated Graphics Processor with AMD Radeon™ Graphics support:

*1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz

*1 x HDMI port, podpora a maximum resolution of 4096x2160@60 Hz

Zvuková karta:

*Realtek® ALC1220 CODEC

*High Definition Audio

*2/4/5.1/7.1-channel

Ethernet: Realtek® 2.5 GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Rozširujúce sloty: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

*AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode

*AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0 x16 mode

RAID radič: RAID 0, RAID 1, RAID 10

Úložný priestor: 1 x M.2 konektor (M2A_CPU), integrovaný v CPU, supporting Socket 3, M kľúč, typ 2580/2280 SSDs:

*AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs

*AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 konektor (M2B_SB), integrovaný v Chipset, supporting Socket 3, M kľúč, typ 2280 SATA a PCIe 3.0 x4/x2 SSDs4 x SATA 6Gb/s konektory, integrovaný v Chipset

USB:

CPU:

* 3 x USB 3.2 Gen 1 ports on the back panel

*1 x port USB Type-C™ na zadnom paneli s USB 3.2 Gen 1 support

Chipset:

*1 x port USB Type-C® s podporou USB 3.2 Gen 1, dostupnou prostredníctvom vnútorného USB headeru

*3 x USB 3.2 Gen 1 ports (1 port na zadnom paneli, 2 porty dostupné cez interný USB header)

*4 x USB 2.0/1.1 ports (2 porty na zadnom paneli, 2 porty dostupné cez vnútorné USB header)

Interné porty:

Napájanie

*1× 24-pin ATX main power connector

*1× 8-pin ATX 12V power connector

*1× CPU fan header

*1× CPU fan / water cooling pump header

*1× system fan header

*1× system fan / water cooling pump header

Súvisiace s úložiskom

*2× M.2 Socket 3 connectors

*4× SATA 6Gb/s connectors

USB

*1× USB Type-C header, USB 3.2 Gen 1

*1× USB 3.2 Gen 1 header

*1× USB 2.0/1.1 header

Ostatné

*3× addressable RGB Gen2 LED strip headers

*1× RGB LED strip header

*1× front panel header

*1× front panel audio header

*1× Trusted Platform Module header

*1× serial port header

*1× Clear CMOS jumper

Porty na zadnom paneli:

*1 x HDMI port

*1 x DisplayPort

*1 x Q-Flash Plus button

*4 x USB 3.2 Gen 1 ports

*1 USB Type-C® port, s USB 3.2 Gen 1 support

*2 x USB 2.0/1.1 ports

*1 x RJ-45 port

*3 x audio jacks

BIOS:

*1 x 128 Mbit flash

*Use of licensed AMI UEFI BIOS

*PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

H/W Monitorovanie:

*Voltage detection

*Temperature detection

*Fan speed detection

*Overheating warning

*Fan fail warning

*Fan speed control

OS: Podpora pre Windows 11 64-bit
