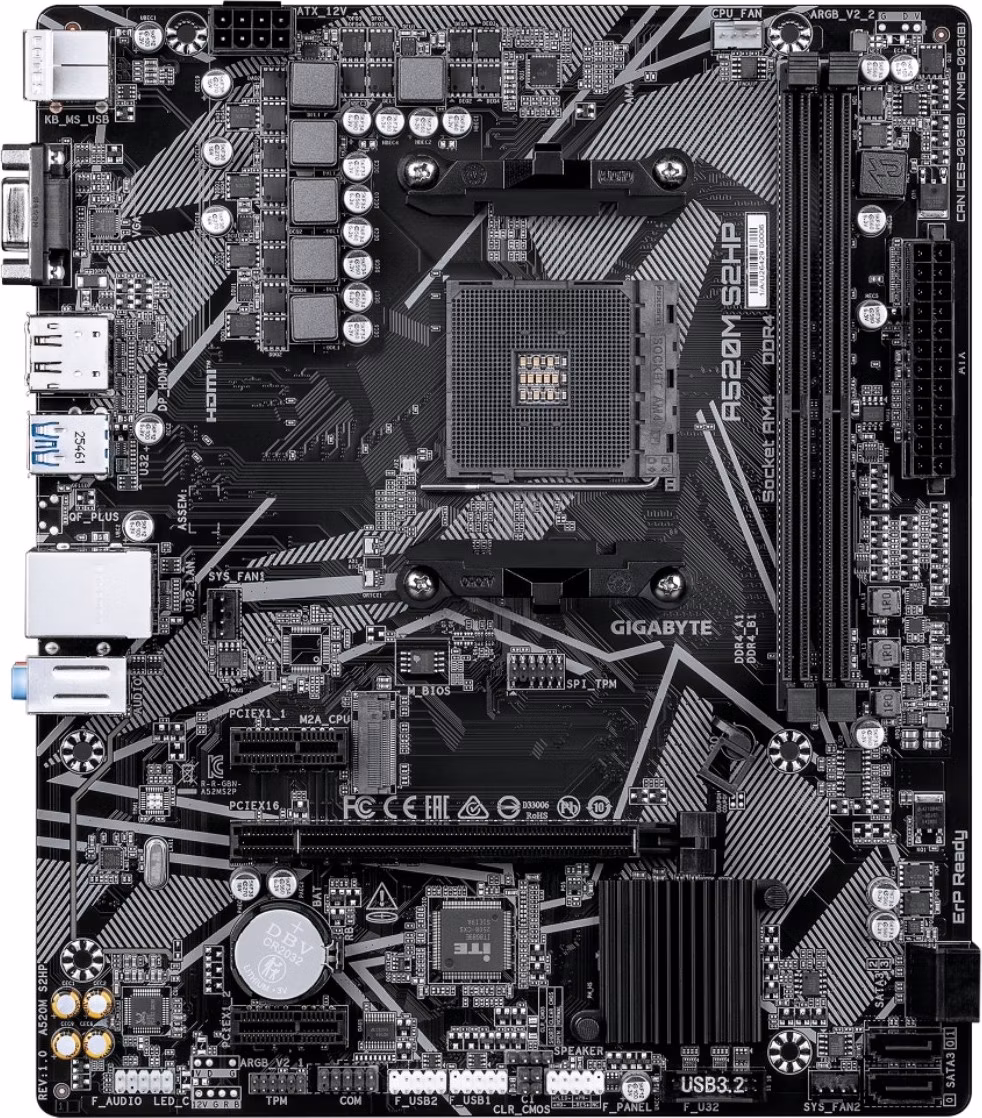

Gigabyte A520M S2HP

Chipset: AMD A520 Rozmerový formát: Micro ATX Form Factor; 24.4cm x 20.5cm

Podpora pre procesory:

*AMD Ryzen™ 5000 G-Series Processors/

*AMD Ryzen™ 5000 Series Processors/

*AMD Ryzen™ 4000 G-Series Processors/

*AMD Ryzen™ 3000 G-Series Processors/

*AMD Ryzen™ 3000 Series Processors

Pätica procesora: AM4

Pamäť:

*2 DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity)

*Podpora pre DDR4 3200/2933/2667/2400/2133 MT/s memory modules

*Dual channel memory architecture

*Podpora pre ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules

*Podpora pre non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

*Podpora pre Extreme Memory Profile (XMP) memory modules

Grafické porty: Integrated Graphics Processor with AMD Radeon™ Graphics support:

*1 x D-Sub port, podpora a maximum resolution of 1920x1200@60 Hz

*1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz

*1 x HDMI port, podpora a maximum resolution of 4096x2160@60 Hz

Zvuková karta:

*Realtek® Audio CODEC

*High Definition Audio

*2/4/5.1/7.1-channel

Ethernet: Realtek® GbE LAN čip (1 Gbps/100 Mbps/10 Mbps)

WLAN + Bluetooth: Nie

Rozširujúce sloty: CPU:

* 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

Chipset:

*2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)

RAID radič: RAID 0, RAID 1, RAID 10

Úložný priestor:

*1 x M.2 konektor, integrovaný v CPU, supporting Socket 3, M kľúč, typ 2280

*SATA and PCIe 3.0 x4/x2 SSDs

*4 x SATA 6Gb/s konektory

USB: CPU:

*4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

*2 x USB 3.2 Gen 1 ports dostupná prostredníctvom vnútorného USB headeru

*6 x USB 2.0/1.1 portov (2 porty na zadnom paneli, 4 porty dostupné cez vnútorné USB headers)

Interné porty: Napájanie

*1× 24-pin ATX main power connector

*1× 8-pin ATX 12V power connector

*1× CPU fan header

*2× system fan headers

Súvisiace s úložiskom

*1× M.2 Socket 3 connector

*4× SATA 6Gb/s connectors

USB

*1× USB 3.2 Gen 1 header

*2× USB 2.0/1.1 headers

Ostatné

*1× front panel header

*1× front panel audio header

*1× Trusted Platform Module header

*1× serial port header

*1× speaker header

*1× chassis intrusion header

*1× Clear CMOS jumper

Porty na zadnom paneli:

*1 x PS/2 keyboard/mouse port

*1 x D-Sub port (Note)

*1 x DisplayPort (Note)

*1 x HDMI port (Note)

*4 x USB 3.2 Gen 1 ports

*2 x USB 2.0/1.1 ports

*1 x RJ-45 port

*3 x audio jacks

BIOS:

*1 x 128 Mbit flash

*Use of licensed AMI UEFI BIOS

*PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

H/W Monitoring:

*Voltage detection

*Temperature detection

*Fan speed detection

*Overheating warning

*Fan fail warning

*Fan speed control

OS: Podpora pre Windows 11 64-bit / Windows 10 64-bit
