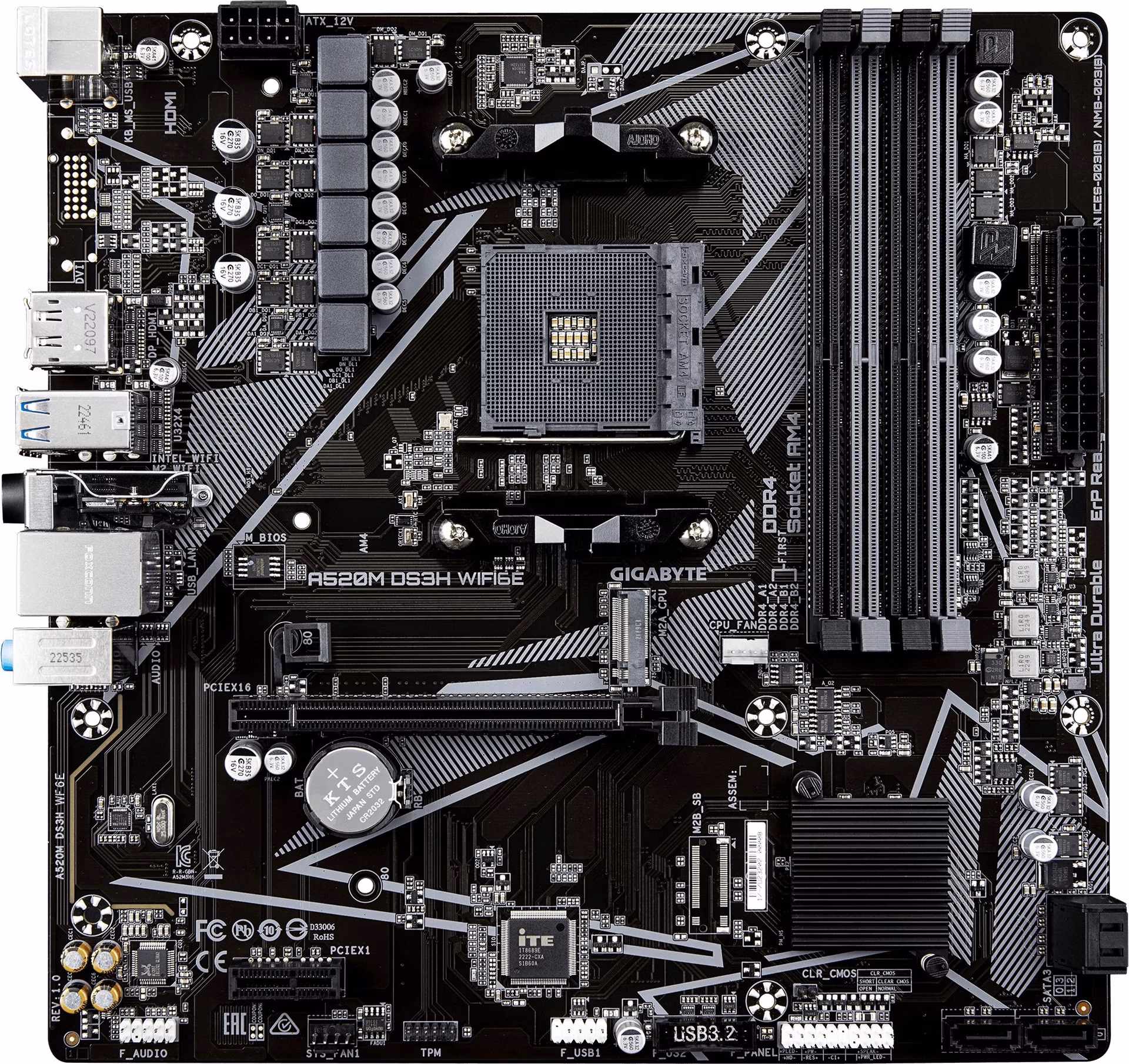

Gigabyte A520M DS3H WIFI6E

Chipset: AMD A520

Rozmerový formát: Micro ATX Form Factor; 24.4cm x 24.4cm

Podpora pre procesory:

*AMD Ryzen™ 5000 G-Series Processors

*AMD Ryzen™ 5000 Series Processors

*AMD Ryzen™ 4000 G-Series Processors

*AMD Ryzen™ 3000 G-Series Processors

*AMD Ryzen™ 3000 Series Processors

Pätica procesora: AM4

Pamäť:

*4x DDR4 DIMM sloty podporujúce až 128GB (32GB každý slot) pamäte

*Podpora pre DDR4 4733(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) 2933 / 2667 / 2400 / 2133 MHz moduly

*Dual channel memory architecture

*Podpora pre ECC Un-buffered DIMM 1Rx8/2Rx8 moduly

*Podpora pre non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 moduly

*Podpora pre XMP

Grafické porty:

Integrated Graphics Processor with AMD Radeon™ Graphics support:

*1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz

*1 x HDMI port, podpora a maximum resolution of 4096x2160@60 Hz

Zvuková karta:

*Realtek® Audio CODEC

*High Definition Audio

*2/4/5.1/7.1-channel

Ethernet: Realtek® GbE LAN čip (1 Gbps/100 Mbps/10 Mbps)

WLAN + Bluetooth: MediaTek Wi-Fi 6E MT7902

*WIFI a, b, g, n, ac, ax, podpora 2.4/5/6 GHz carrier frequency bands

*BLUETOOTH 5.3

* Support for 11ax 160MHz bezdrôtový štandard

Rozširujúce sloty:

1 x slot PCI Express x16, integrovaný v CPU:

*Supporting PCIe 3.0 x16 mode

1 x slot PCI Express x1, integrovaný v chipsete:

*Supporting PCIe 3.0 x1 mode

RAID radič: RAID 0, RAID 1, RAID 10

Úložný priestor:

1 x M.2 konektor, integrovaný v CPU, supporting Socket 3, M kľúč, typ 2280 SSDs:

*Supporting SATA and PCIe 3.0 x4/x2 SSDs

4 x SATA 6Gb/s konektory, integrated in the Chipset:

*Supporting for RAID 0, RAID 1, and RAID 10

USB:

CPU:

*4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

*2 x USB 3.2 Gen 1 ports dostupná prostredníctvom vnútorného USB headeru

*6 x USB 2.0/1.1 portov (4 porty na zadnom paneli, 2 porty dostupné cez vnútorné USB header)

Interné porty:

Napájanie

*1× 24-pin ATX main power connector

*1× 8-pin ATX 12V power connector

*1× CPU fan header

*1× system fan header

Súvisiace s úložiskom

*1× M.2 Socket 3 connector

*4× SATA 6Gb/s connectors

USB

*1× USB 3.2 Gen 1 header

*1× USB 2.0/1.1 header

Ostatné

*1× front panel header

*1× front panel audio header

*1× Trusted Platform Module (TPM) header

*1× Clear CMOS jumper

Porty na zadnom paneli:

*1 x PS/2 keyboard/mouse port

*1 x DisplayPort (Note )

*1 x HDMI port (Note )

*4 x USB 3.2 Gen 1 ports

*4 x USB 2.0/1.1 ports

*1 x RJ-45 port

*2 x antenna connectors (1T1R)

BIOS:

*1 x 128 Mbit flash

*Use of licensed AMI UEFI BIOS

*PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

H/W Monitorovanie:

*Voltage detection

*Temperature detection

*Fan speed detection

*Fan fail warning

*Fan speed control

OS: Podpora pre Windows 11 64-bit a Windows 10 64-bit
