Vďaka optimalizovanému elektrickému dizajnu môže 5PX poskytnúť až 99% účinnosť, čím sa znižujú náklady na chladenie a energiu. Nový grafický LCD displej poskytuje jasné informácie o stave a meraniach UPS na jednej obrazovke. Prvýkrát v tomto odvetví môže 5PX merať energiu spotreby. Hodnoty kWh je možné sledovať pomocou LCD displeja.. 5PX ponúka sériové a USB pripojenie, plus extra slot pre voliteľnú komunikačnú kartu alebo reléovú kontaktnú kartu). Softvér Intelligent Power od spoločnosti Eaton kompatibilný so všetkými hlavnými operačnými systémami vrátane virtualizačného softvéru VMware a Hyper-V.

GENERAL SPECIFICATIONS
PRODUCT NAME

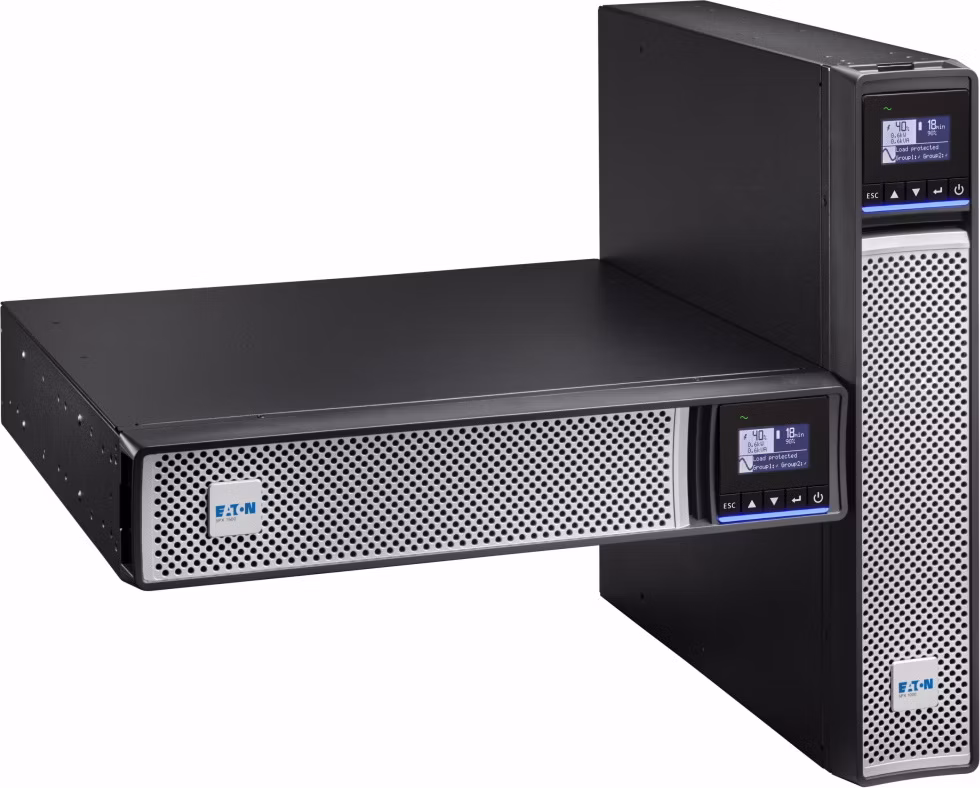

Eaton 5PX Gen2 UPS
CATALOG NUMBER
5PX1500IRT2UG2
PRODUCT LENGTH/DEPTH
448 mm
PRODUCT HEIGHT
85.5 mm
PRODUCT WIDTH
438 mm
PRODUCT WEIGHT
22.4 kg
WARRANTY
3 year on electronics, 2 year on battery
COMPLIANCES
IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
RoHS Compliant
REACH
UL 1778
CSA 22.2
CERTIFICATIONS
CE
cTUVus
EAC
Cm
UKCA
Ukr
KCC
ENERGY STAR certified
MODEL CODE
Eaton 5PX 1500i RT2U G2
TECHNICKÉ ÚDAJE PRODUKTU
SECONDARY FREQUENCY - MAX
60 Hz
OUTPUT WAVEFORM
Sine wave
MAX NUMBER OF BATTERY PACKS
4
WATTAGE
1500 W
OUTPUT POWER FACTOR
1
FORM FACTOR
Rack/tower
INCLUDES NETWORK CARD
No
INPUT CONNECTION
C14
INPUT VOLTAGE - MIN
150 V
OUTPUT VOLTAGE - MAX
240 V
SECONDARY FREQUENCY - MIN
50 Hz
SOFTWARE COMPATIBILITY
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
BATTERY REPLACEMENT
User replaceable
BATTERY TYPE
Lead-acid maintenance-free (replaceable)
SPECIAL FEATURES
Automatic Voltage Regulation (AVR)|Energy efficient, reduce energy and cooling costs|Delivers clean sinewave output|Provides more real power (watts) to protect more equipment with a Unity power factor (VA=W)|LCD display for real-time status and measurements|Long backup time with up to 4 optional EBM|Meter energy consumption (down to the managed outlet groups)|Versatile product for rack or tower installation|1 slot for optional com card (Network management card, Relay card or Network and Industrial card)|Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)|1 USB port + 1 serial port
OUTPUT VOLTAGE - MIN
200 V
COLOR
Black/silver
EXTENDED BATTERY CAPABILITY
Yes
OUTPUT VOLTAGE RANGE
230 V (+6%/-10%)
TOPOLOGY
Line-interactive
INPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)
INPUT FREQUENCY RANGE
47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode
INPUT VOLTAGE - MAX
294 V
VOLTAGE TYPE
AC
PHASE (OUTPUT)
1
BATTERY MANAGEMENT
ABM & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units
AUTO SHUTDOWN FUNCTION
Yes
NUMBER OF OUTPUTS C13
8
VA RATING
1500 VA
POTENTIAL FREE SWITCH CONTACT
Yes
RECEPTACLE
(8) C13
PHASE (INPUT)
1
PACKAGE CONTENTS
Rack-mounting kit|(2) Supports for tower mounting|Cable locking system|USB cable|Serial cable|(2) IEC-IEC cables|Quickstart guide|Safety instructions
NOISE LEVEL
<40 dB at 1 meter
FEED TYPE
1
RUNTIME GRAPH
View runtime graph
USER INTERFACE
Multilingual graphical LCD display
BATTERY QUANTITY
4
RACK SIZE
2U
VOLTAGE
230V
TEMPERATURE RANGE
0° to 40°C (32° to 104°F), batteries recommended max. 25°C (77°F)
COMMUNICATION
USB port (HID compliant)|Serial port (RS232)|Mini-terminal block for remote On/Off and Remote Power Off|Mini-terminal block for output relay|Dry contacts (3 outputs, 1 input, optocoupler, DB9)
RELATIVE HUMIDITY
0-90% non-condensing
RACK MOUNTING KIT
Yes
OUTPUT FREQUENCY
50/60 Hz
TYPE OF INTERFACE
Other
PRIMARY FREQUENCY - MIN
47 Hz
BATTERY RATING
12 V / 9 Ah
TYPE
UPS
OUTPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)
EXPANSION SLOTS
One slot for optional communication card
INPUT VOLTAGE RANGE
160-294 V (adjustable to 150 V-294 V)
NOMINAL FREQUENCY
50-60 Hz
PRIMARY FREQUENCY - MAX
70 Hz
ALTITUDE
3000 m
