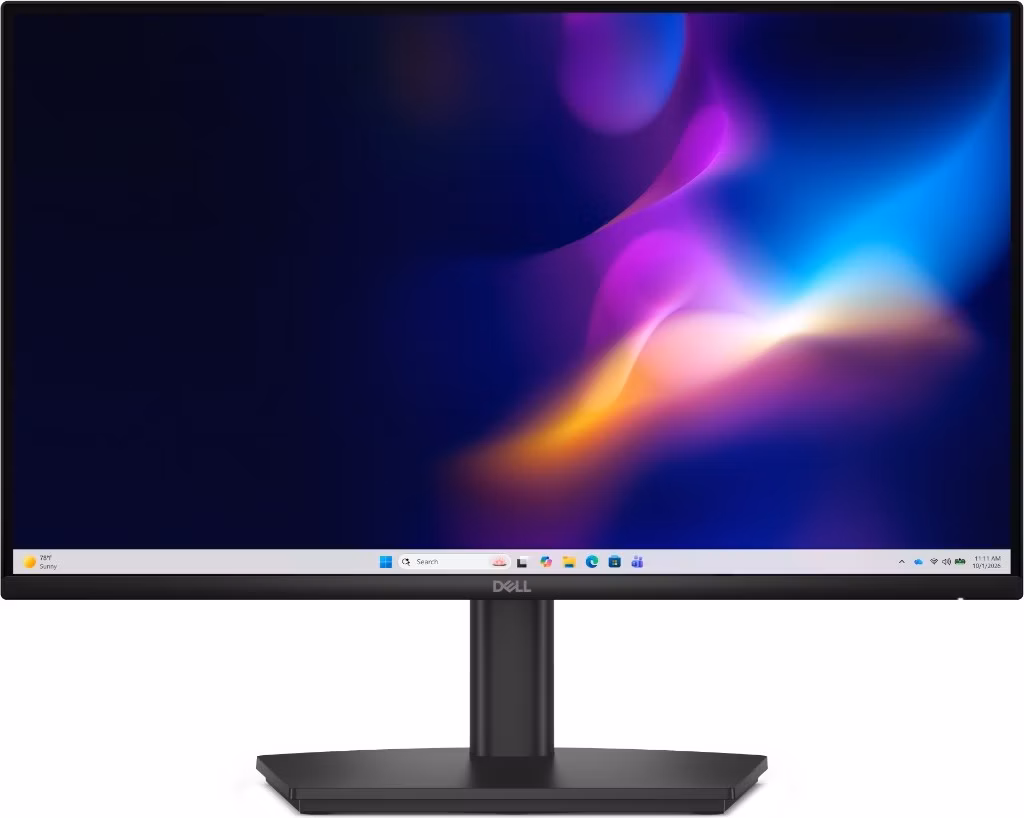

DELL Pro 22 E2226HS/ 22" LED/ IPS/ 16:9/ 1920x1080/ 1000:1/ 5ms/ 100 Hz/ HDMI/ DP/ VGA/ repro/ 3Y Basic on-site

General Information Manufacturer Dell Technologies Manufacturer Part Number 323WX Brand Name Dell Product Line Pro Product Model E2226HS Product Name Pro 22 Adjustable Stand Monitor - E2226HS Product Type LCD Monitor Technical Information Number of Screens 1 Screen Size Class 22" Viewable Screen Size 21.5" Screen Mode Full HD Display Screen Type Flat Panel Panel Technology In-plane Switching (IPS) Technology Response Time Details 5 ms GTG (Fast) 8 ms GTG Aspect Ratio 16:9 Pixel Pitch 0.24795 mm x 0.24795 mm Horizontal Viewing Angle 178° Vertical Viewing Angle 178° Mount Type Panel Mount HDCP Supported Yes Maximum Adjustable Height 5.12" Tilt Angle -5° to 21° Swivel Angle -173° to 173° Pivot Angle +/-90° Features Anti-glare Arsenic-free Glass BFR Free Cable Lock Slot Eye Comfort Technology Low Blue Light Mercury-free PVC Free Security Lock Adjustable Stand Yes Stand Adjustments Height Pivot Slant Swivel Tilt Stand Included Yes Stand Type Adjustable Pivot Yes Curved Screen No Glass Hardness 3H Surface Treatment Anti-glare Flicker Free Yes Video Maximum Resolution 1920 x 1080 Standard Refresh Rate 100 Hz Color Supported 16.7 Million Colors Color Depth 8-bit (6-bit + FRC) Native Contrast Ratio 1,000:1 Brightness 300 Nit Color Gamut 72% NTSC (CIE 1931) Calibration Accuracy No Maximum Preset Resolution 1920 x 1080 at 100Hz Pixel Per Inch (PPI) 102 Resolution Type Standard Audio Number of Speakers 2 Speakers Yes Speaker Output Power 2 x 2 W Interfaces/Ports Network (RJ-45) No HDMI Yes HDMI Version 1.4 USB No VGA Yes DisplayPort Yes Thunderbolt No USB Type-C No Number of HDMI Inputs 1 Total Number of HDMI Ports 1 Number of DisplayPorts 1 Number of VGA Ports 1 Number of DisplayPort 1.4 (HDCP 1.4) 1 Audio Line In No DVI-D No Audio Line Out No DisplayPort Input Yes DisplayPort Output No Number of HDMI 1.4 (HDCP 1.4) 1 USB Type-B No DisplayPort HDCP Version HDCP 1.4 HDMI HDCP Version HDCP 1.4 RS-232 (Rear) No Thunderbolt Downstream (Rear) No USB Type-A (Front) No USB Type-A (Rear) No USB Type-C (Front) No USB Type-C (Power Delivery) Upstream Supported (Rear) No USB Type-C (Without Power Delivery) Upstream Supported (Rear) No Interface/Port Details 1 HDMI port (HDCP 1.4) (Supports up to 1920 x 1080, 100 Hz as specified in HDMI 1.4) 1 DisplayPort 1.4 (HDCP 1.4) port 1 VGA port Built-in Devices Webcam No Microphone No Environmental Conditions Operating Temperature Range 32°F (0°C) to 104°F (40°C) Non-operating Temperature Range -4°F (-20°C) to 140°F (60°C) Operating Humidity Range 10% to 80% (Non-condensing) Non-operating Humidity Range 5% to 90% (Non-condensing) Maximum Operating Altitude 16404 ft Maximum Non-operating Altitude 40000 ft Power Description Input Voltage Range 100V AC to 240V AC Operating Power Consumption 10.40 W Standby Power Consumption 300 mW Off-Mode Power Consumption 300 mW Frequency 50 Hz 60 Hz Maximum Power Consumption 28.50 W Voltage Current 700 mA Input Voltage Range/Current Details 100 VAC to 240 VAC/50 Hz or 60 Hz ± 3 Hz/0.7 A Physical Characteristics VESA Mount Compatible Yes VESA Mount Standard 100 x 100 Color Family Black Product Color Black Height 11.3" Width 19.2" Depth 2.2" Height with Stand 18.56" Width with Stand 19.21" Depth with Stand 8.33" Compressed Height with Stand 13.45" Extended Height with Stand 18.56" Bezel Width (Top) 0.24" Bezel Width (Bottom) 0.48" Bezel Width (Left) 0.24" Bezel Width (Right) 0.24" Weight (Approximate) 4.83 lb Stand Height 15.75" Stand Width 10.12" Stand Depth 8.33" Weight with Stand & Cables (Approximate) 8.64 lb Miscellaneous Package Contents Pro 22 Adjustable Stand Monitor - E2226HS Stand Power Cable: 1.80 m 1 x DisplayPort to DisplayPort cable (1.8 m) for NA and LATAM QR card Safety, Environmental, and Regulatory Information Certifications & Standards California CEC BFR/PVC reduce monitor (Circuit boards are made from BFR/PVC-free laminates) Arsenic-Free glass and Mercury-Free for the panel only Meets NFPA 99 leakage current requirements. Product Safety, EMC, and Environmental Datasheets Dell Regulatory Compliance Homepage Dell and the Environment GS Mark Platform Supported Linux Mac Windows Energy Star Yes TAA Compliant Yes TCO Certified Yes Eye Comfort Certification Yes Eye Comfort Rating 3 Star Dell Display and Peripheral Manager Compatibility Yes Remote Asset Management Dell Display and Peripheral Manager (DDPM) Cable Type Included Power Cable: 1.80 m 1 x DisplayPort to DisplayPort cable (1.8 m) for NA and LATAM Environmentally Friendly Yes Environmental Certification China Environmental United Certification Center (CEC) Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+) Electronic Product Environmental Assessment Tool Gold (EPEAT Gold) TCO Certified 10.0 TCO Certified Edge Energy Efficiency Certification China Energy Conservation Program (CECP) ENERGY STAR 8.0 Energy Efficiency Compliance Energy-related Products Directive (ErP) Energy-related Products Directive Lot 5 (ErP Lot 5) Korea E-Standby Minimum Energy Performance Standards (MEPS) Environmental Compliance China Restriction of Hazardous Substances (China RoHS) Eurasian Economic Union Restriction of Hazardous Substances (EAEU RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE) Warranty Limited Warranty 3 Year Additional Warranty Information 3-Year Advanced Exchange Service Advance Echanged Service: If needed, a replacement part or unit is dispatched after completing phone or online diagnosis. A fee applies if the defective unit is not returned. Availability may vary. Additional conditions apply.
