EX520
AX3000 Dual Band Wi-Fi 6 Router
Dual-Band Wi-Fi 6: Rýchlosť až 3000 Mbps - 2402 Mbps na 5 GHz a 574 Mbps na 2,4 GHz.*
Rozšírené pokrytie: Štyri vysoko výkonné antény a technológie Beamforming zaisťujú silné a spoľahlivé WiFi pokrytie po celom dome.
Viac pripojení: Technológie OFDMA a MU-MIMO zvyšujú kapacitu a umožňujú súčasný prenos dát na viac zariadení.**
EasyMesh: Vytvorte chytrú mesh sieť s plynulým pokrytím a väčšou flexibilitou vďaka štandardnej mesh technológii.
Vylepšené zabezpečenie: Šifrovanie WPA3, Multi-SSID a rodičovská kontrola poskytujú personalizované a bezpečnejšie online prostredie.
Gigabitové káblové pripojenia: 1x gigabitový WAN port a 4x gigabitové LAN porty zaisťujú rýchly a flexibilný prístup k internetu.
Jednoduché nastavenie: Nastavte svoju sieť v priebehu niekoľkých minút pomocou výkonnej aplikácie Aginet.
Vzdialená správa: Podpora TAUC (TP-Link Aginet Unified Cloud) a protokolov TR-069, TR-098, TR-181, TR-111 a TR-143.

HARDWARE FEATURES

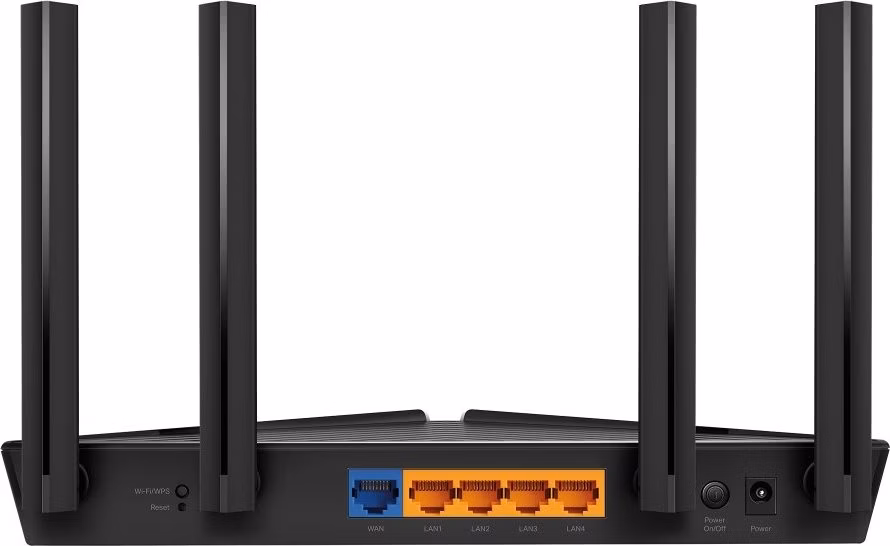

Interface 1× 10/100/1000 Mbps RJ45 WAN Port
4× 10/100/1000 Mbps RJ45 LAN Ports
Button Power On/Off Button, Reset Button, Wi-Fi/WPS Button
External Power Supply 12V/1.5A
Dimensions ( W x D x H ) 10.2 × 5.3 × 1.5 in (260.2 × 135.0 × 41.6 mm)
Antenna Type Four high-performance external antennas
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n/ac/ax 5 GHz
IEEE 802.11b/g/n/ax 2.4 GHz
Frequency 2.4 GHz and 5 GHz
Signal Rate AX3000
5 GHz: Up to 2402 Mbps
2.4 GHz: Up to 574 Mbps
Wireless Functions Enable/Disable Wireless Radio, WMM, Wireless Statistics
Wireless Security WPA/WPA2/WPA3 encryptions
Transmission Power CE:<20dBm (2.4GHz); <23dBm (5.15GHz–5.35GHz); <30dBm (5.47GHz–5.725GHz)
Multi-SSID 2× 5 GHz Multi-SSID
2× 2.4 GHz Multi-SSID
Wireless Schedule Support 2.4 GHz and 5 GHz Wireless Schedule
Mesh Technology EasyMesh compatible, and support 802.11k/v/r
SOFTWARE FEATURES
Quality of Service Hardware QoS, Flow Classification
Advanced Features TX Beamforming, MU-MIMO, DL/UL OFDMA, Airtime Fairness
Operating Modes Router, Access Point
WAN Type Dynamic IP/Static IP/PPPoE/PPTP/L2TP(Multi-EWAN)
Management Local management: WebGUI, Aginet app (for end users)
Remote management :Aginet ACS, TR-069, TR-098, TR-181, TR-369, TR-111,TR-143 for service providers
Aginet APP for end user (need to log in wtih TP-Link ID and bind your device to it)
Cloud management: TP-Link Aginet Unified Cloud (TAUC)
DHCP Server, DHCP Client List, Address Reservation
Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, NO-IP
VPN Pass-Through IPSec, PPTP, L2TP
Access Control Parental Controls, White List, Black List
Firewall Security DoS, SPI Firewall, IP and MAC Address Binding
Protocols IPv4, IPv6
VPN Server PPTP, OpenVPN, IPSec
OTHERS
Certification CE
Package Contents WiFi 6 Router EX520
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Subscription with an internet service provider (for internet access)
Environment Operating Temperature: 0?–40? (32?–104?)
Storage Temperature: -40?–60? (-40?–140?)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
