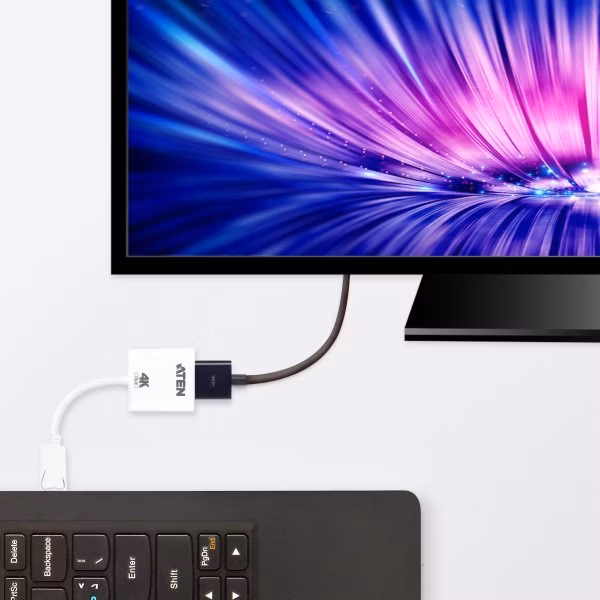

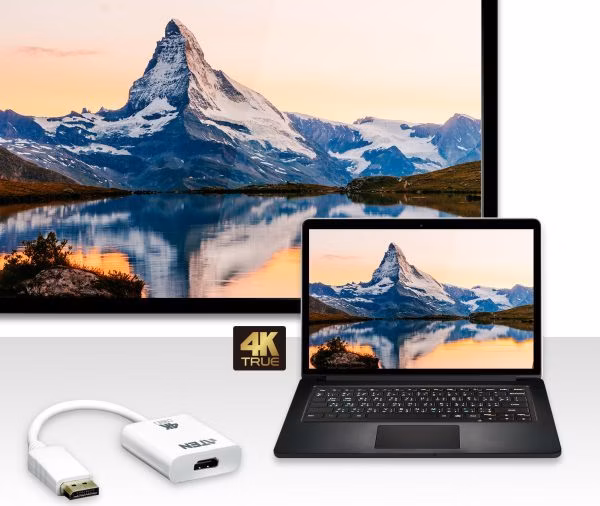

Video Input Interfaces 1 x DisplayPort Male (White) Video Output Interfaces 1 x HDMI Type A Female (Black) Video Max. Pixel Clock 600 MHz Max. Resolution 4096x2160@60Hz / 3840x2160@60Hz Compliance DP1.2a / HDMI 2.0 / HDCP 2.2 Max. Data Rate 18 Gbps (6 Gbps Per Lane) Audio Output 1 x HDMI Type A Female (Black) Environmental Operating Temperature 0 - 50 oC Storage Temperature -20–60 oC Humidity 0 - 80% RH, Non-Condensing Physical Properties Housing Plastic Weight 0.04 kg ( 0.09 lb ) Dimensions (L x W x H) 18.00 x 4.50 x 1.50 cm (7.09 x 1.77 x 0.59 in.) Carton Lot 40 pcs Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. The VC986B is an active DisplayPort to HDMI adapter that allows you to connect your DisplayPort output device to the HDMI input of a True 4K TV or any other display. The ATEN VC986B is an active adapter, featuring an advanced chip which ensures stable video signal conversion even when the video source does not support Dual-Mode DisplayPort (DP++).* Moreover, support for resolutions up to True 4K makes this adapter ideal for users who require a high performance signal conversion solution. *Dual-Mode DisplayPort (DP++) can directly process the signal from DisplayPort to HDMI or DVI signals. Converts DisplayPort signals to HDMI output Supports VGA, SVGA, XGA, SXGA, UXGA, 1080p and resolutions up to True 4K Active adapter – features an advanced chip which ensures stable video signal conversion even when the video source does not support Dual-Mode DisplayPort (DP++) Supports AMD Eyefinity™ Technology (multi-screen setups) Audio supported No software or driver installation required DisplayPort 1.2 compliant Plug-n-Play No installation software or drivers required. The VC986B is the perfect solution for connecting DisplayPort inputs to HDMI output displays. The built-in chip ensures high quality signal conversion, smooth output, and compatibility with DP++. Supports True 4K Supports resolutions up to True 4K, making it highly compatible across devices. Superior Signal Quality The internal copper foil shielding protection ensures signal integrity and minimizes external interference, giving you extra reliable and superior quality signals. Supports Multi-Screen Technology Compatible with AMD Eyefinity graphics cards for multiple display applications. Package Contents 1x VC986B True 4K DisplayPort to HDMI Active Adapter
