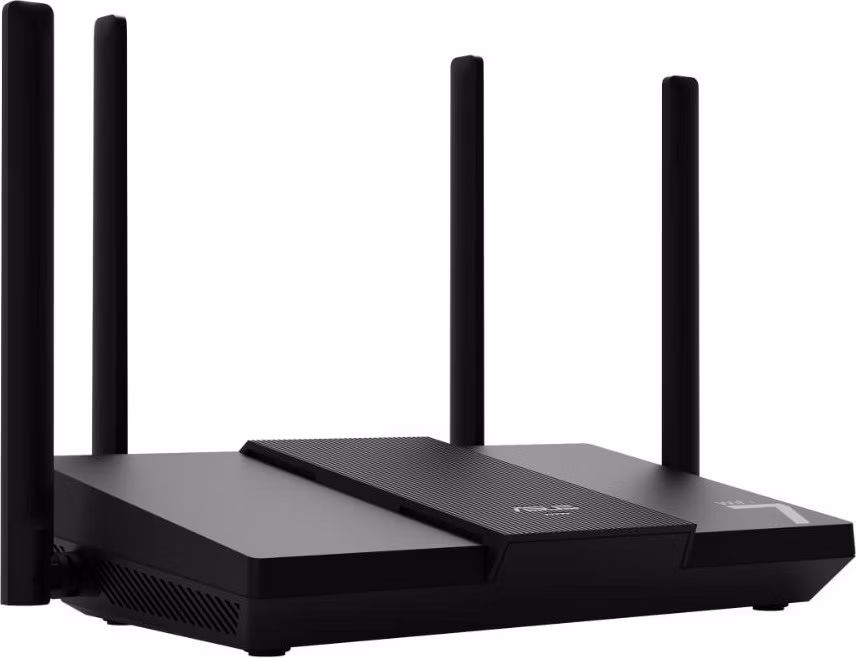

ASUS RT-BE50 Worry-Free Smart Home WiFi Elevate your smart home with blazing-fast dual-band Wi-Fi 7 speeds of up to 3600 Mbps and boosted coverage with AI-boosted Smart AiMesh technology. With next-gen ASUS advanced network technologies such as IoT Network, the RT-BE50 safeguard your network end-to-end, 24/7. RT-BE50 Network Standard IPv6 IPv4 WiFi 7 (802.11be) WiFi 6 (802.11ax) WiFi 5 (802.11ac) WiFi 4 (802.11n) IEEE 802.11g IEEE 802.11b IEEE 802.11a Product Segment BE3600 ultimate BE performance : 688+2882 Mbps WiFi Data Rate WiFi 7 (802.11be) (5GHz): up to 2882 Mbps WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps 802.11g : up to 54 Mbps 802.11b : up to 11 Mbps 802.11a : up to 54 Mbps Antenna External antenna x 4 Transmit / Receive 5GHz 2x2 2.4GHz 2x2 Processor Quad-core processor Memory 128 MB Flash 256 MB RAM Boosts Speed OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 4096-QAM high data rate 20/40/80/160 MHz bandwidth Operating Frequency 2.4GHz / 5GHz, 5 GHz 2.4 GHz Operating Mode Repeater Mode Media Bridge Mode Access Point Mode Range Extender Mode AiMesh Node Mode Wireless Router Mode I/O Ports 1x 2.5G for WAN, 3x 1G for LAN, Buttons WPS Button, Reset Button LED Indicator Power x 1 Power Supply AC Input : 100V~240V (50~60Hz) DC Output : 12 V with max. 1.5 A current Package Content RT-BE50 RJ-45 cable Power adapter Quick Start Guide Warranty card Product Weight (g) 450g Product Dimensions 261 x 156 x 50 mm AiMesh AiMesh, • Primary AiMesh Router, • AiMesh Node Parental Control Time Scheduling, Safe Browsing, Customized Internet Schedule Guest Network "The Guest Network provides Internet connection for guests but restricts access to your local network.", Support Guest Network, • Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3, Guest Network Connection Time Limit Security VPN, WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS, Let's Encrypt, DNS-over-TLS, SSH, Security Scan, Firewall, • Maximum Firewall Keyword Filter : 64, • Maximum Firewall Network Service Filter : 32, • Maximum Firewall URL Filter : 64 VPN Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion Traffic Control • Bandwidth Monitor, • Bandwidth Limiter, -- Maximum Bandwidth Limiter Rule : 32, Traditional QoS, -- Maximum Traditional QoS Rule : 32, Traffic Monitor, • Real-time Traffic Monitor, • Wired Traffic Monitor, • Wireless Traffic Monitor WAN Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP, Port forwarding, • Maximum Port Forwarding Rule : 64, Port triggering, • Maximum Port Triggering Rule : 32, DMZ, DDNS, NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay LAN DHCP Server, IGMP Snooping, IPTV, Manually Assign IP Address, • Maximum Manually Assign IP Address Rule : 64, Wake on LAN (WOL) Wireless MU-MIMO, UTF-8 SSID, WiFi MAC Address Filter, • Maximum MAC Filters : 64, Wireless Scheduler, Airtime Fairness, RADIUS Client, Universal Beamforming, Explicit Beamforming User Interface WEB: ASUSWRT, APP: ASUS Router APP Administration Configuration Backup and Restore, Diagnosis tools, Feedback System, System Log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update
