Chipset: AMD B650

Rozmerový formát: ATX Form Factor (30.5 cm x 24.4 cm)

Podpora pre procesory: AMD Ryzen 7000 Series Desktop Processors

Pätica procesora: AM5

Pozícia na pamäti: 4 x DIMM, Dual Channel Memory Architecture

Podpora pre pamäte: DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 MHz

Max.veľkosť operačnej pamäte: 128 GB

Podpora pre pamäte typu: ECC, Non-ECC

Grafické výstupy: (na základe procesora)

*1 x DisplayPort (Input only)

*1 x HDMI port

*1 x USB Type-C

Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC

*Podpora S/PDIF out port

Sieťová karta:

*1 x Realtek 2.5Gb Ethernet

*1 x Realtek 1Gb Ethernet

Rozširujúce sloty:

*2 x PCIe 4.0 x16 slots (support x16 or x8/x8 modes)

*1 x PCIe 4.0 x16 slot (supports x4 mode)

*1 x PCIe 4.0 x1 slot

RAID radič: RAID 0/1/10

SATA: 4 x SATA 6Gb/s ports

M.2: 3 x M.2 slots

USB:

* Interné:

*1 x USB 3.2 Gen 2x2 konektor (supports USB Type-C)

*1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

*2 x USB 2.0 headers support 4 additional USB 2.0 ports

* Externé:

*1 x USB 3.2 Gen 2 port (1 x USB Type-C, shared with DisplayPort graphic output )

*4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C)

*2 x USB 2.0 ports (2 x Type-A)

Interné porty:

* I/O ConnectorsFan and Cooling related

*1 x 4-pin CPU Fan header

*1 x 4-pin CPU OPT Fan header

*1 x 4-pin AIO Pump header

*4 x 4-pin Chassis Fan headers

* Power related

*1 x 24-pin Main Power connector

*1 x 8-pin +12V Power connector

*1 x 4-pin +12V Power connector

*1 x 6-pin PCIe Power connector

* Storage related

*3 x M.2 slots (Key M)

*4 x SATA 6Gb/s ports

* USB

*1 x USB 3.2 Gen 2x2 konektor (supports USB Type-C)

*1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

*2 x USB 2.0 headers support 4 additional USB 2.0 ports

* Miscellaneous

*3 x Addressable Gen 2 headers

*1 x Aura RGB header

*1 x Clear CMOS header

*1 x COM Port header

*1 x Front Panel Audio header (AAFP)

*1 x M.2 slot (Key E)

*1 x 20-5 pin System Panel header

*1 x Thermal Sensor header

*1 x Thunderbolt (USB4) header

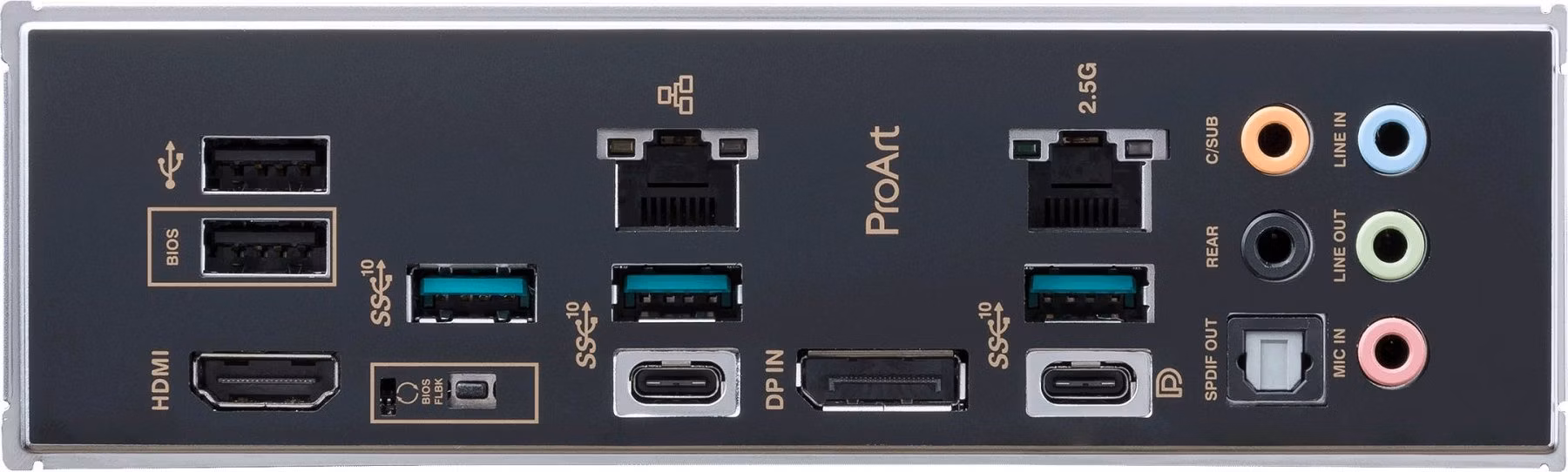

Externé porty:

*1 x USB 3.2 Gen 2 port (1 x USB Type-C, shared with DisplayPort graphic output )

*4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C)

*2 x USB 2.0 ports (2 x Type-A)

*1 x DisplayPort (Input only)

*1 x HDMI port

*1 x Realtek 2.5Gb Ethernet

*1 x Realtek 1Gb Ethernet

*5 x Audio jacks

*1 x Optical S/PDIF out port

*1 x BIOS FlashBack button

BIOS: UEFI AMI BIOS, 256 Mb Flash ROM
