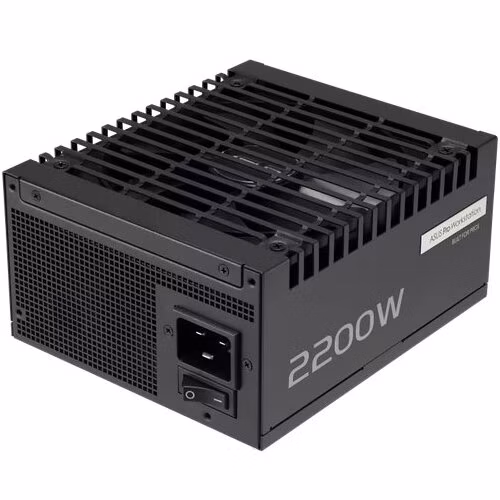

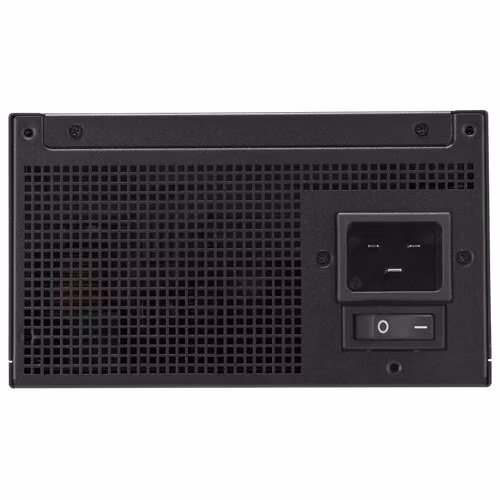

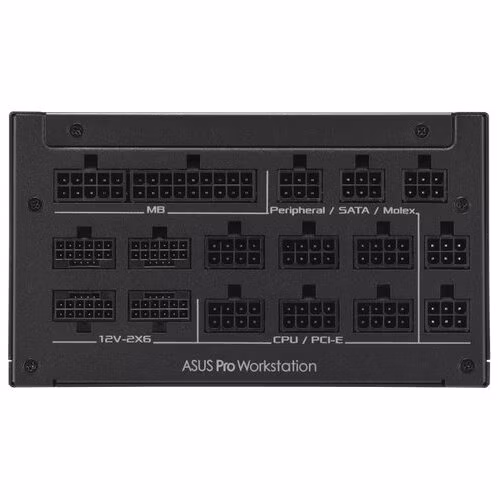

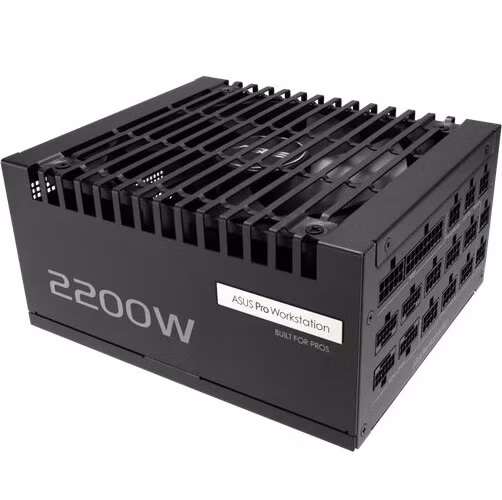

ASUS Pro WS 2200W PLATINUM Modular

ASUS Pro WS 2200W Platinum PSU delivers exceptional voltage stability and advanced power delivery for professionals, supporting up to four graphics cards to meet the demanding AI workloads. Heavy-duty PSU: Supports up to four GeForce RTX™ 5080 graphics cards via rock-solid voltage stability and advanced power delivery. Dual-ball fan bearings: Designed to last up to twice as long as sleeve-bearing designs. Extruded aluminum heatsinks: Cover critical components, delivering lower temperatures and noise versus reference designs. ATX 3.1 compatible: Compliant with the ATX 3.1 standard, ensuring enhanced voltage and current regulation. PCIe® 5.1 ready: Features native 12V-2x6 connectors for cutting-edge graphics card power. 80 PLUS Platinum certified: Utilizes low-ESR Japanese server grade capacitors and premium components for industry-leading power efficiency. 10-year warranty: Provides confidence in long-term reliability. ASUS-PRO-WS-2200P Intel Form Factor ATX12V PFC Type Active PFC ATX Standard ATX 3.1 80 PLUS Efficiency 80Plus Platinum Protection Features OPP/OVP/UVP/SCP/OCP/OTP Hazardous Materials ROHS AC Input Range 200-240Vac DC Output Voltage +3.3V +5V +12V -12V +5Vsb Maximum Load 25A 25A 183.3A 0.8A 3A Combined Load 130W 130W 2200W 9.6W 15W Total Output 2200W Cable Connectors MB 24/20-pin x 1 CPU 4+4-pin x 2 PCIE 5.1 16-pin x 4 PCIE 6+2-pin x 4 SATA x 12 PERIPHERAL x 3 Package Contents Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (1000mm) PCI-E Gen 5.1 16-pin Cable x 4 (750mm) PCI-E 1-to-1 Cable x 4 (750mm) SATA 1-to-3 Cable x 4 (400+120+120mm) Peripheral 1-to-3 Cable x 1 (400+150+150mm) Chassis Screws Package x 1 Cable Tie x 6 User Manual x 1 Dimensions 175 x 150 x 86 mm Weight 2.13 kg (single PSU) AURA SYNC No 0dB Fan Button No, this product is without 0dB technology.
