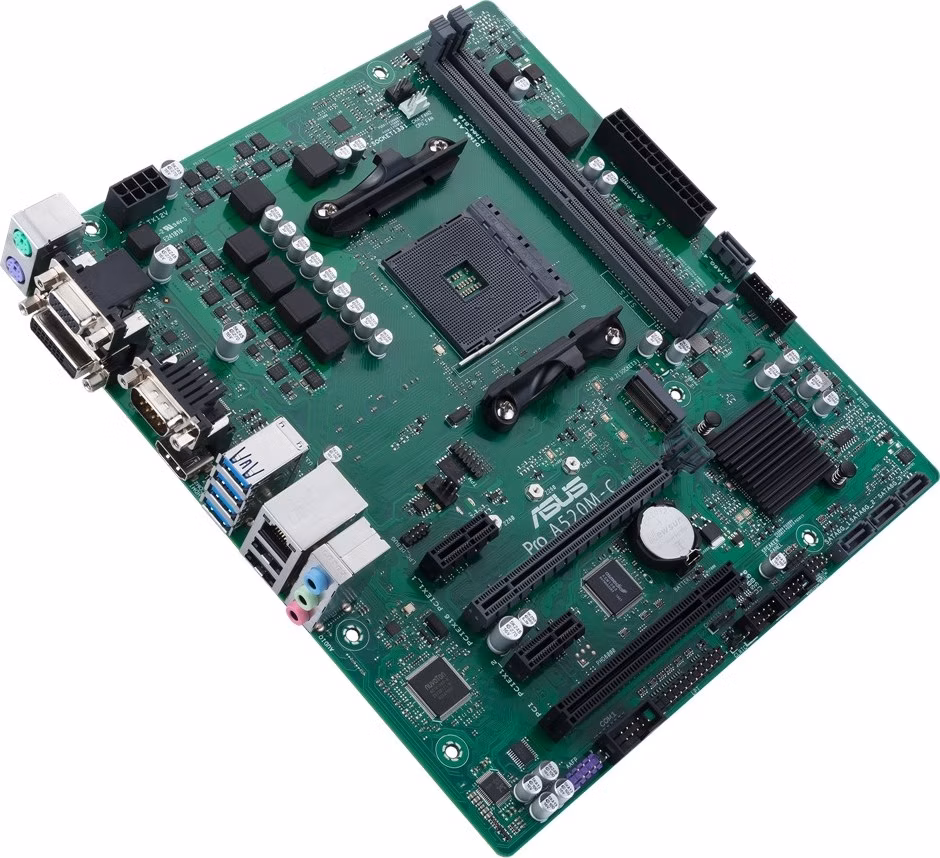

ASUS PRE A520M-C/CSM/AM4/mATX

Chipset: AMD A520

Rozmerový formát: mATX Form Factor (244 mm x 229 mm)

Podpora pre procesory: 3. Gen AMD Ryzen™ a 3. Gen AMD Ryzen™ s Radeon™ Graphics Processors

Pätica procesora: AM4

Pozícia na pamäti: 2x DDR4 DIMM

Podpora pre pamäte:

*4600(OC)/4400(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz Un-

Max.veľkosť operačnej pamäte: 64 GB

Podpora pre pamäte typu: DDR4 (Dual Channel Memory Architecture)

*ECC Memory (ECC mode) support varies by CPU.

Grafická karta: (na základe CPU)

Zvuková karta:

*Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC

Sieťová karta:

*Realtek RTL8111H 1Gb Ethernet

Rozširujúce sloty:

*1x PCIe 3.0 x16 (x16 mode)

*2x PCIe 3.0 x1

*1x PCI

RAID radič: 0, 1, 10

SATA:

*4x SATA 6Gb/s port(s)

M.2:

*1x M.2 Socket 3 s M Key, Type 2242/2260/2280 (PCIE 3.0 x4 a SATA modes) storage devices support

USB:

* zadné USB porty (celkom 6)

*4x USB 3.2 Gen 1 port(s)(4 x Type-A)

* 2x USB 2.0 port(s)(2 x Type-A)

* predné USB porty (celkom 6)

*2x USB 3.2 Gen 1 port(s)(2 x Type-A)

*4x USB 2.0 port(s)(4 x Type-A)

Interné porty:

*1x CPU Fan connector(s)

*2x Chassis Fan connector(s)

*1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

*2x USB 2.0 konektor(s) support(s) additional 4 USB 2.0 port(s)

*1x M.2 Socket 3 s kľúčom M, typ 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

*1x SPI TPM header

*1x LPT header

*4x SATA 6Gb/s connector(s)

*1x 24-pin EATX Power connector(s)

*1x 8-pin EATX 12V Power connectors

*1x Front panel audio konektor(s) (AAFP)

*1x Clear CMOS jumper(s)

*1x System panel connector

*1x COM port header

*1x Chassis intrusion header

*1x LPC Debug header

*1x Speaker connector

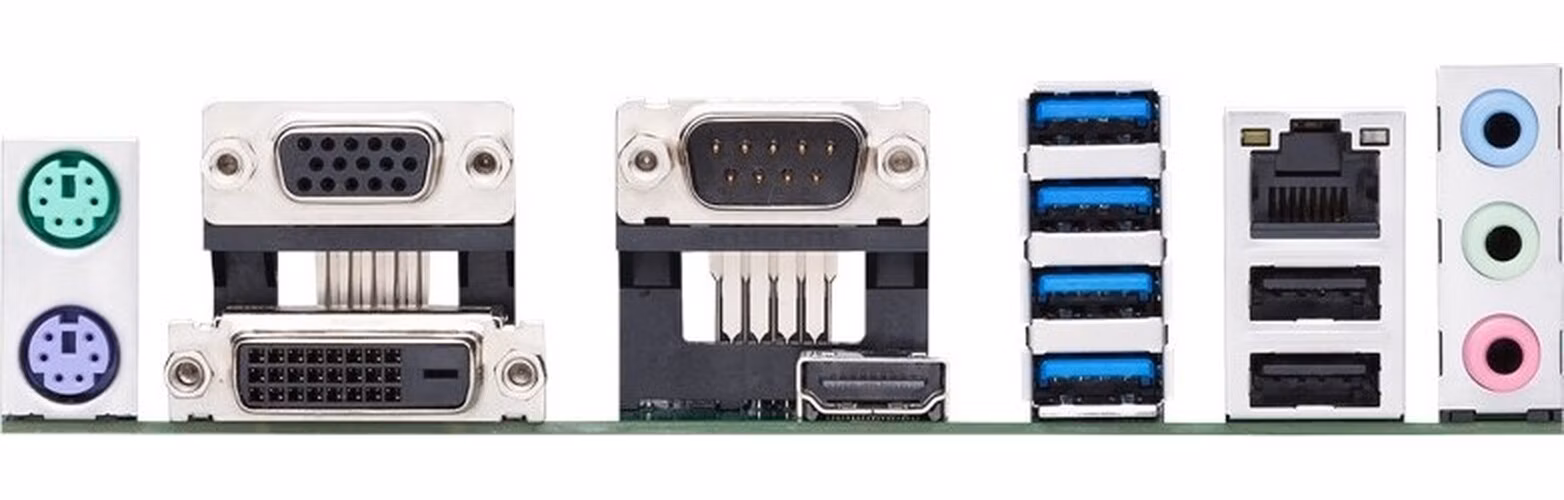

Externé porty:

*1x PS/2 klávesnica (purple)

*1x PS/2 myš (green)

*1x DVI-D

*1x D-Sub

*1x HDMI

*1x LAN (RJ45) port(s)

*4x USB 3.2 Gen 1 (blue) Type-A

*2x USB 2.0

*1x COM port(s)

*3x Audio jack(s)

Príslušenstvo:

*užívateľská príručka

*1x ACC Express Activation Key Card

*I/O Shield

*2x SATA 6Gb/s cable(s)

*1x Supporting DVD

*1x M.2 SSD screw package(s)

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Stránka výrobcu: https://www.asus.com/Motherboards/Pro-A520M-C-CSM

https://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11-ready/

https://www.asus.com/support/FAQ/1046215
