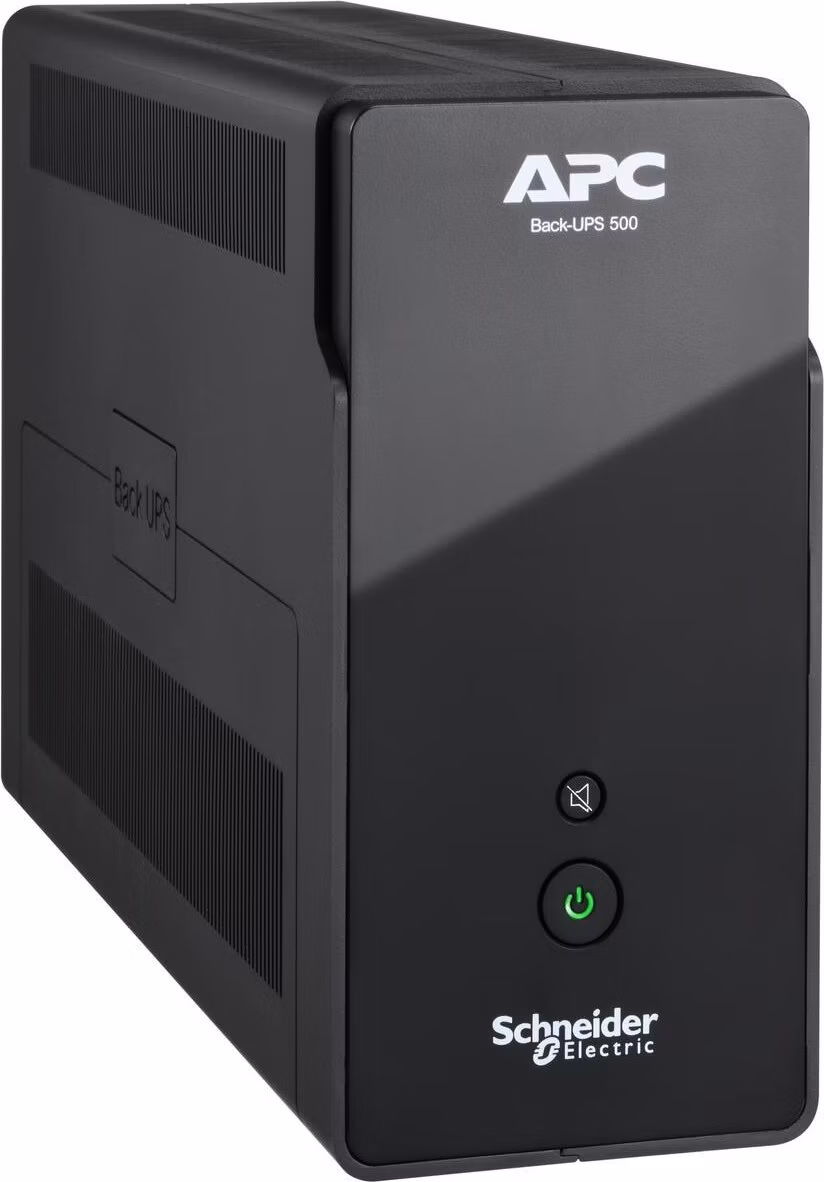

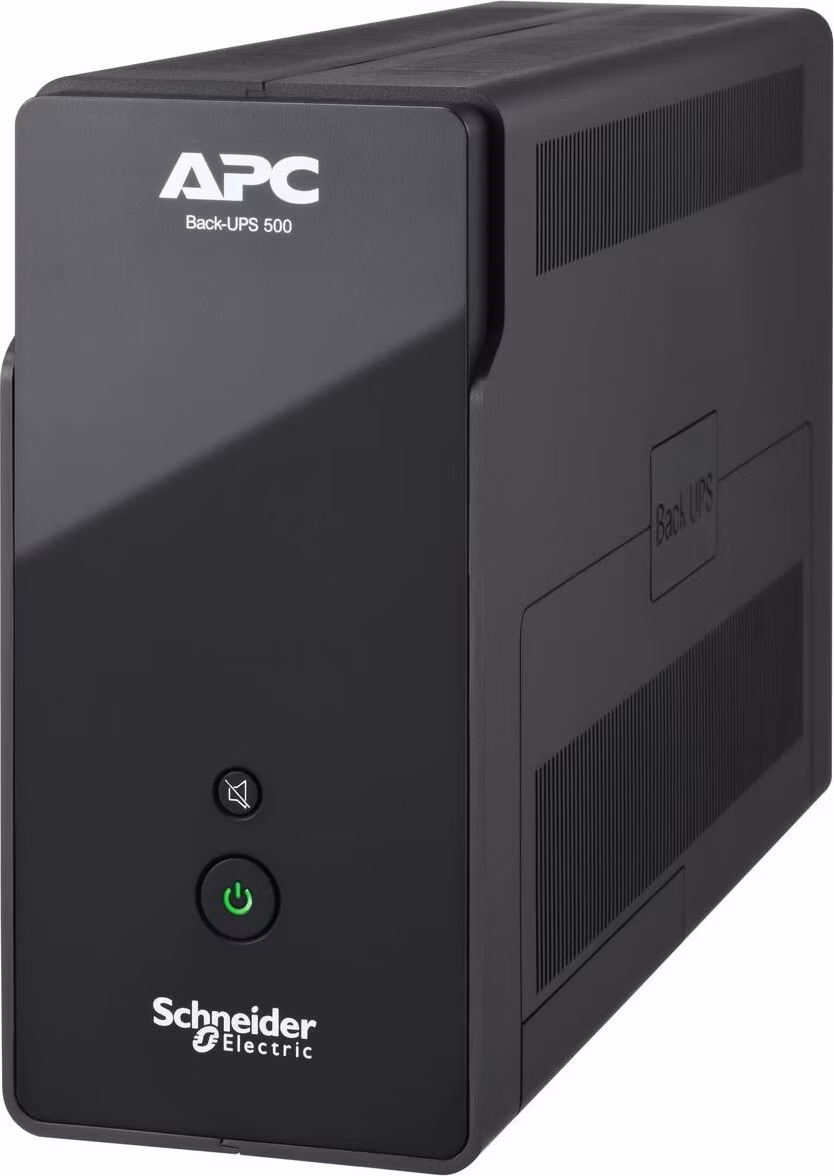

APC Back-UPS, 500VA / 300 W, 6 IEC, komunikace USB, Tower, 230 V

Záložný zdroj UPS APC, 500VA/300W, 6 IEC, USB komunikácia, veža, 230V. Kompaktná veľkosť umožňuje inštaláciu v rôznych prostrediach. AVR koriguje kolísanie napätia a zabezpečuje spoľahlivé napájanie. LED displej poskytuje ľahko čitateľný stav jednotky a stav napájania zo siete. 1 GB ochrany dátovej linky zaisťuje úplnú ochranu vášho zariadenia pred prepätím. Ľahko dostupné tlačidlo na prednej strane pre rýchle stlmenie zvukových alarmov.

Technické parametre:
Run time for load
300 W
Min-max: 30-300 W
6min 10s
Max. Capacity Used
100 %
Main Input Voltage
230 V
Main Output Voltage
230 V
Other Output Voltage
230 V
Rated power in W
300 W
rated power in VA
500 VA
Product or component type
Uninterruptible power supply (UPS)
Input Connection Type
IEC 60320 IEC 60309
output connection type
6 IEC 60320 C13 surge
Cable length
1.5 m
Number of cables
1
battery type
Lead-acid battery
Range of product
Back-UPS
USB Charging Port
None
Graphs
Run Time
View Runtime Graph
Efficiency
View Efficiency Graph
Complementary
UPS connectivity
USB port
Battery type
Lead-acid internal included
Mounting mode
Tower
Batteries & Runtime
Number of battery filled slots
0
Number of battery free slots
0
Battery recharge time
8 h
Battery charger power
20 W rated
Battery power in VAH
102 VAh runtime
Battery life
3…5 year(s)
Extended runtime
0
General
Number of power module free slots
0
Number of power module filled slots
0
Redundant
No
Physical
Colour
Black
Height
190 mm
Width
91 mm
Depth
310 mm
Net weight
6.1 kg
Mounting preference
No preference
mounting mode
Not rack-mountable
USB compatible
Yes
Input
Network frequency
50/60 Hz +/- 5 Hz auto-sensing
Plug standard
IEC 60309
Input voltage limits
176...294 V
Maximum input current
10 A
Output
Maximum configurable power in W
300 W
Output frequency
47...63 Hz +/- 0.1 % for 50 Hz nominal sync to mains
UPS type
Line interactive
Wave type
Stepped approximation to a sinewave
Output voltage tolerance
+/- 5% static and 100% load step
Maximum output current
10 A
Maximum configurable power in VA
500 VA
Transfer time
8 ms typical : 10 ms maximum
Conformance
Product certifications
CE
Equipment protection policy
Lifetime : 75000 euros
Environmental
Ambient air temperature for operation
0…40 °C
Relative humidity
0…95 %
Operating altitude
0...3000 m
Ambient air temperature for storage
-15…45 °C
Storage Relative Humidity
0…95 %
Acoustic level
45 dBA
Heat dissipation
71.3 Btu/h
Communications & Management
Control panel
LED Status display with on line : on battery : replace battery and overload indicators
Surge Protection and Filtering
Surge energy rate
1080 J
Noise suppression
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
28.5 cm
Package 1 Width
16.3 cm
Package 1 Length
39.5 cm
Package 1 Weight
7.3 kg
SCC14
10731304792052
