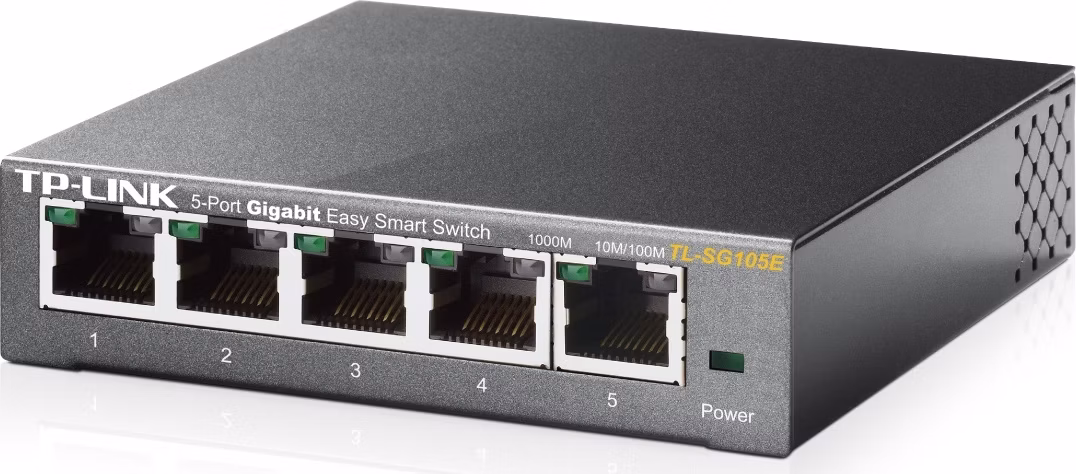

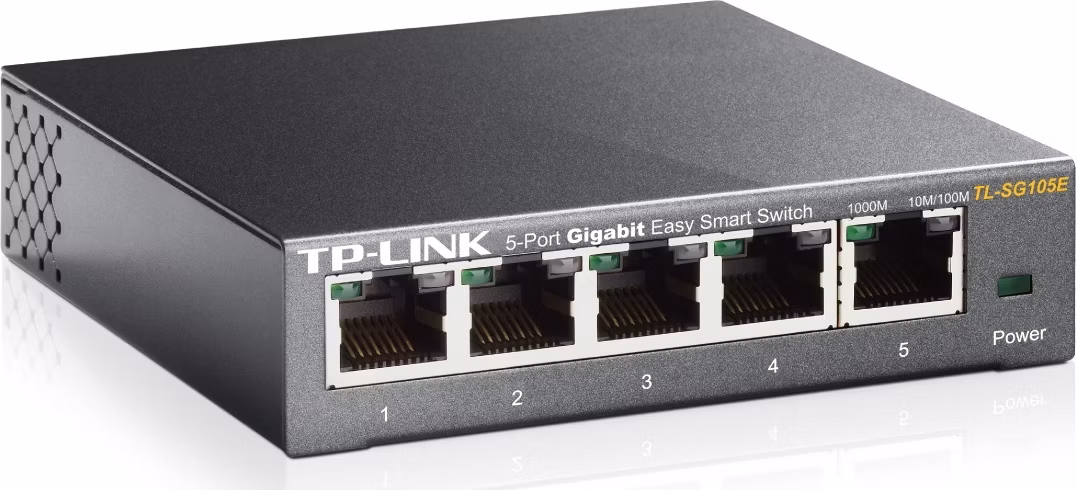

TP-Link TL-SG105E 5-Port Gigabit Easy Smart Switch

OVERVIEW

* 5 10/100/1000Mbps RJ45 ports

* Provides network monitoring, traffic prioritization and VLAN features

* Innovative energy-efficient technology reduces power output by up to 75%

* Simple network set-up on top of plug-and-play connectivity

* Centrally manage all Easy Smart Switches with Easy Smart Configuration Utility

SPECIFICATIONS

HARDWARE FEATURES

Standards and Protocols

* IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface

* 5 10/100/1000Mbps RJ45 Ports

* AUTO Negotiation/AUTO MDI/MDIX

Network Media

* 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

* EIA/TIA-568 100? STP (maximum 100m)

* 100BASE-TX: UTP category 5, 5e cable (maximum 100m)

* EIA/TIA-568 100? STP (maximum 100m)

* 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

* EIA/TIA-568 100? STP (maximum 100m)

Dimensions (W X D X H)

* 100 * 98 *25 mm

Fan Quantity

* Fanless

Power Supply

* 100-240VAC, 50/60Hz

* PERFORMANCE

MAC Address Table

* 8K

Packet Buffer Memory

* 2Mb

Packet Forwarding Rate

* 7.4Mpps

Jumbo Frame

* 16KB

SOFTWARE FEATURES

Quality of Service

* Support Port Based/802.1p Based priority

* Support 4 priority queues

* Rate Limit

* Storm Control

L2 Features

* IGMP Snooping

* Link Aggregation

* Port Mirroring

* Cable Diagnostics

* Loop Prevention

VLAN

* Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)

* MTU/Port/Tag VLAN

Transmission Method

* Store-And-Forward

OTHERS

Certification

* FCC, CE, RoHS

Package Contents

* TL-SG105E

* Power Cord

* Installation Guide

* Resource CD

* Rubber Feet

System Requirements

* Microsoft® Windows® XP, Vista™ Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux.

Environment

* Operating Temperature: 0°C~40°C

* Storage Temperature: -40°C~70°C

* Operating Humidity: 10%~90% non-condensing

* Storage Humidity: 5%~90% non-condensing
